Configuration Guide 476

Configuring Voice VLAN Configuration Example

7) Choose the menu LLDP > LLDP-MED> Port Config to load the following page. Enable

LLDP-MED on port 1/0/1.

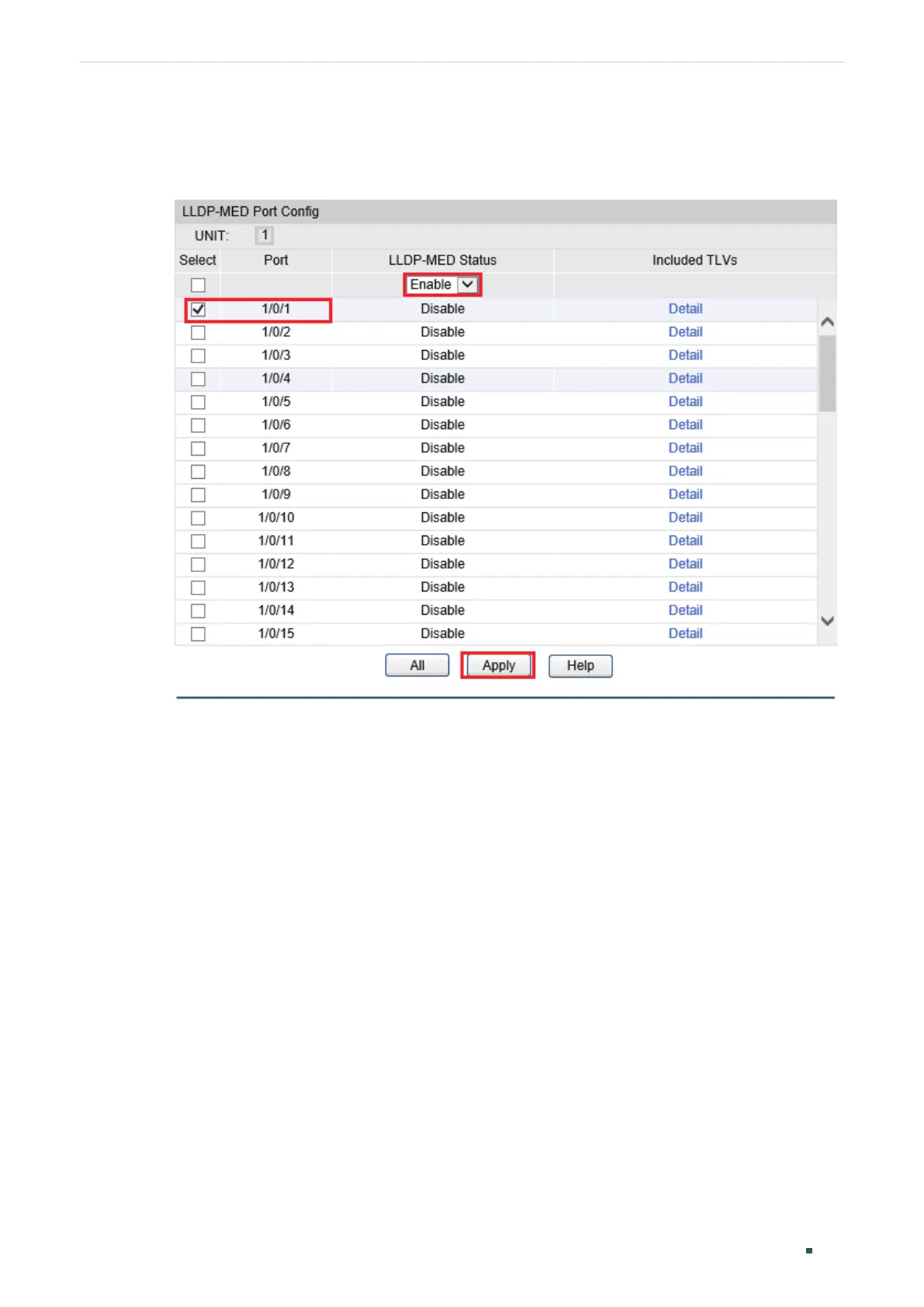

Figure 3-9 Configuring LLDP-MED on Ports

Click Detail of port1/0/1 to load the following page. Configure the TLV information

which will be carried in LLDP-MED frames and sent out by port 1/0/1. Select all TLVs,

and configure location identification parameters.
