Configuring Voice VLAN Configuration Example
Configuration Guide
475

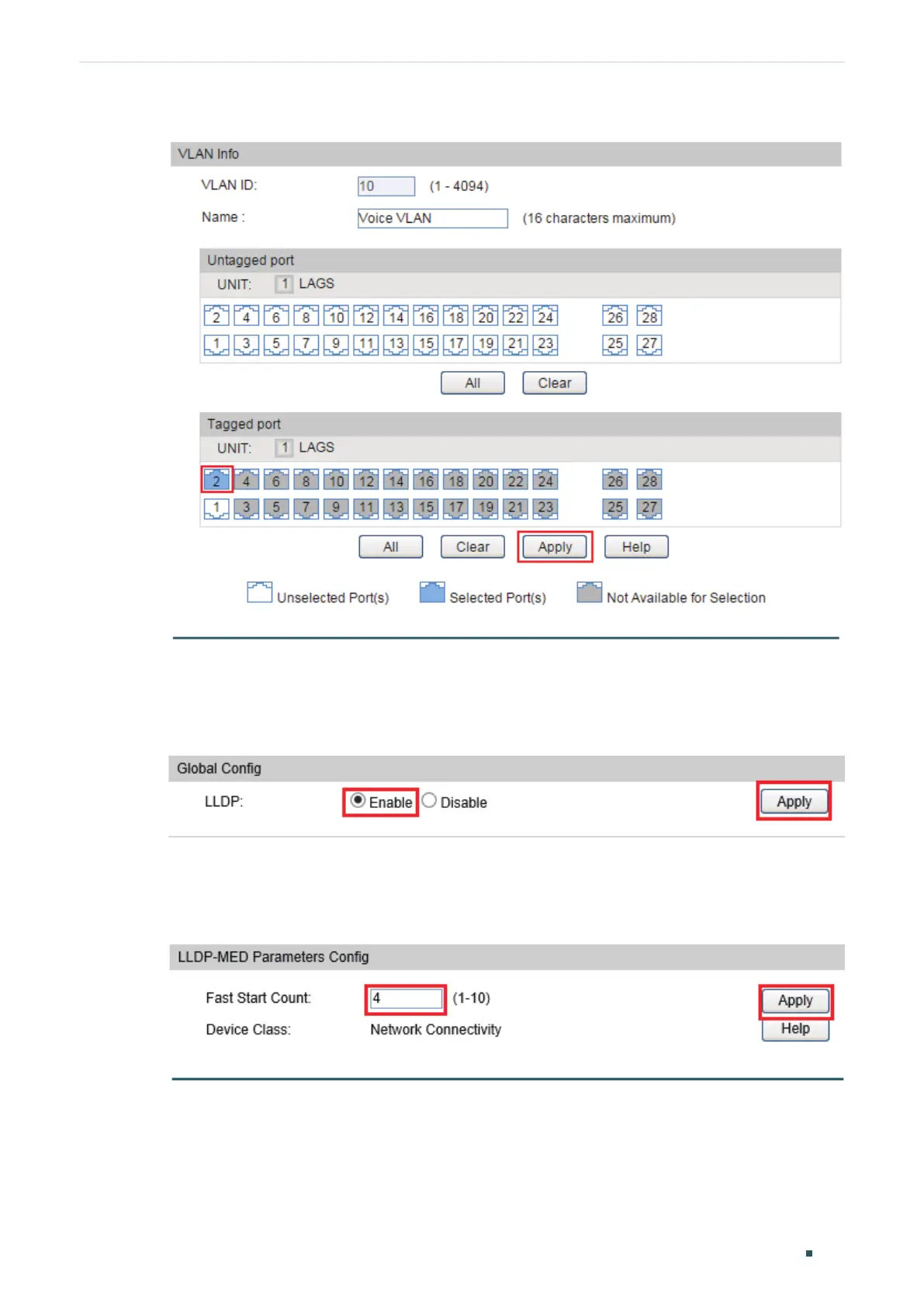

Figure 3-6 Adding Port 1/0/2 to the Voice VLAN
5) Choose the menu LLDP > Basic Config> Global Config to load the following page.
Enable LLDP globally.
Figure 3-7 Enabling LLDP Globally
6) Choose the menu LLDP > LLDP-MED> Global Config to load the following page. Set
fast start count as 4.
Figure 3-8 Configuring LLDP-MED Globally
