Configuring SNMP & RMON Configuration Example
Configuration Guide
733

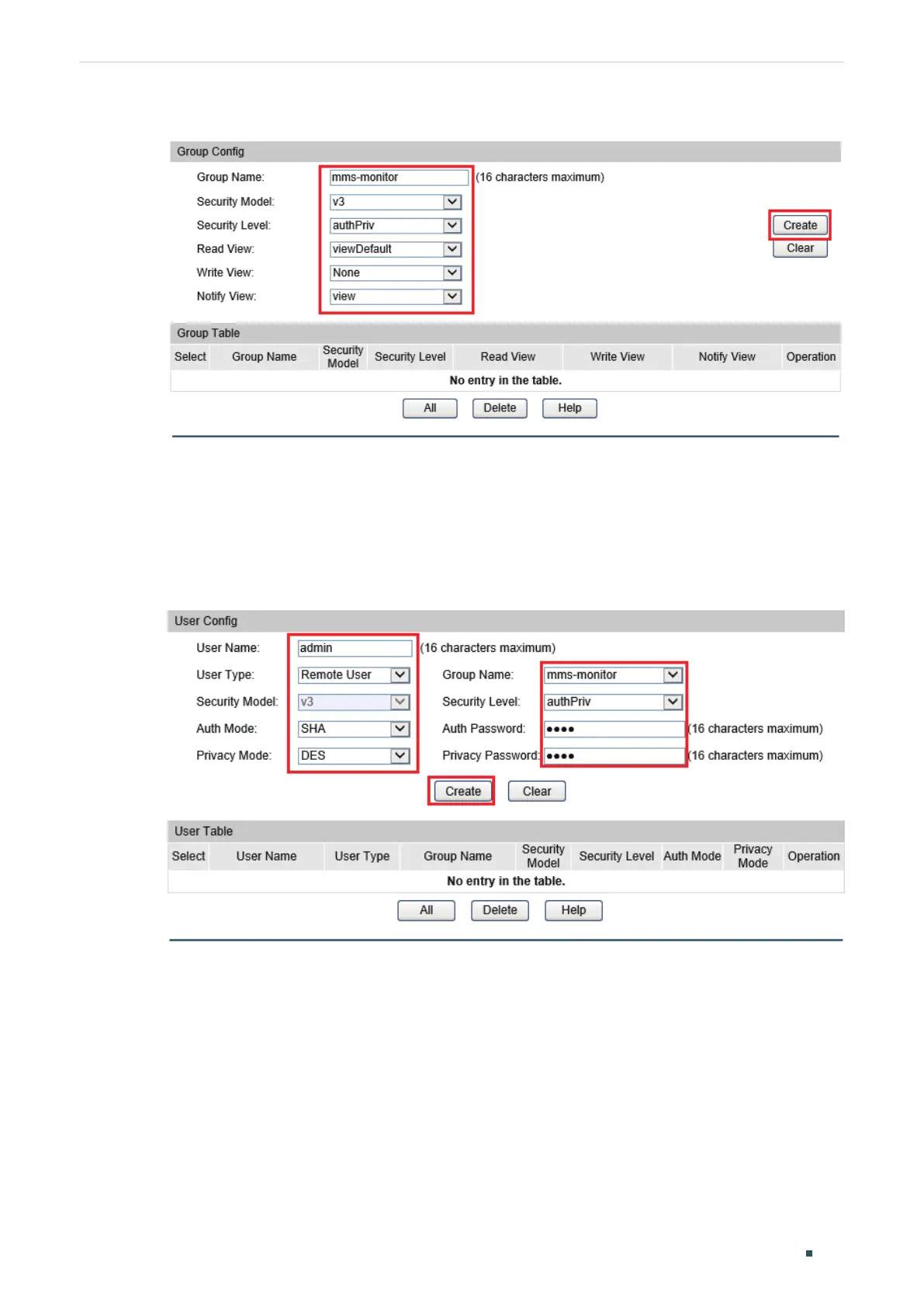

Figure 6-4 SNMP Group Configuration
4) Choose SNMP > SNMP Config > SNMP User to load the following page. Create a user
named admin for the NMS, set the user type as Remote User and specify the group
name. Set the Security Model and Security Level in accordance with those of the group
nms-monitor. Choose SHA authentication algorithm and DES privacy algorithm, and set
corresponding passwords. Click Create.
Figure 6-5  User Config
5) Choose SNMP > Notification > Notification Config to load the following page. Specify
the IP address of the NMS host and the port of the host for transmitting notifications.
Set the User, Security Model and Security Level according to configurations of the
SNMP User. Choose the type as Inform, and set the retry times as 3, with the timeout
period as 100 seconds. Click Create.
