Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1 647
UG586 November 30, 2016
www.xilinx.com
Chapter 5: Multicontroller Design
4. Click Next to proceed to the Project Type page (Figure 5-4). Select the Project Type as
RTL Project because MIG deliverables are RTL files.
5. Click Next to proceed to the Add Sources page (Figure 5-5). RTL files can be added to
the project in this page. If the project was not created earlier, proceed to the next page.
X-Ref Target - Figure 5-4

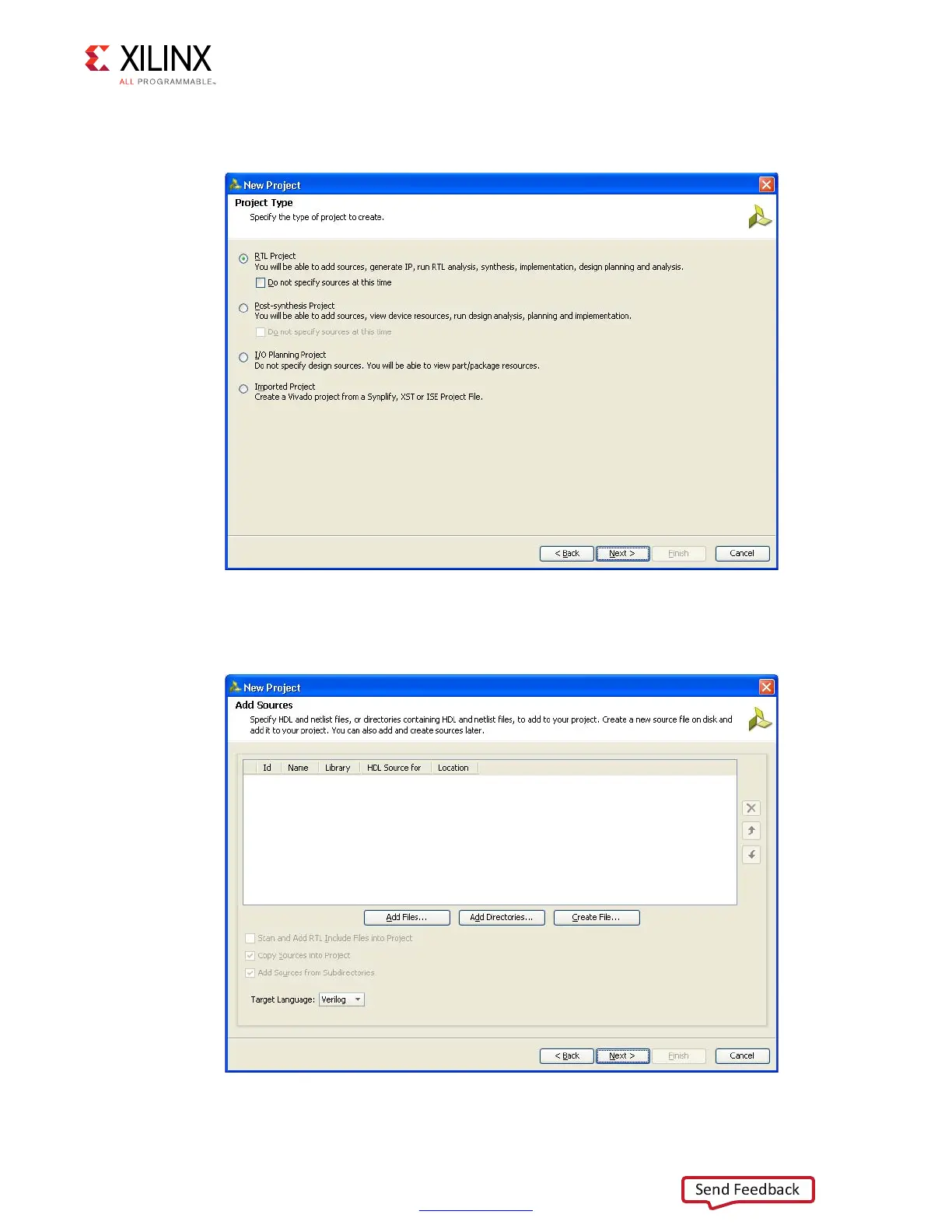

Figure 5-4: Project Type
X-Ref Target - Figure 5-5
Figure 5-5: Add Sources
