Chapter 5: Multicontroller Design
Select the target Family, Package, and Speed Grade. The valid devices are displayed in
the same page, and the device can be selected based on the targeted device
(Figure 5-9).
Apart from selecting the parts by using the Parts option, parts can be selected by
choosing the Boards option, which brings up the evaluation boards supported by
Xilinx
®
(Figure 5-10). With this option, designs can be targeted for the various
evaluation boards. If the XCI file of an existing IP was selected in an earlier step, the
same part should be selected here.
X-Ref Target - Figure 5-9

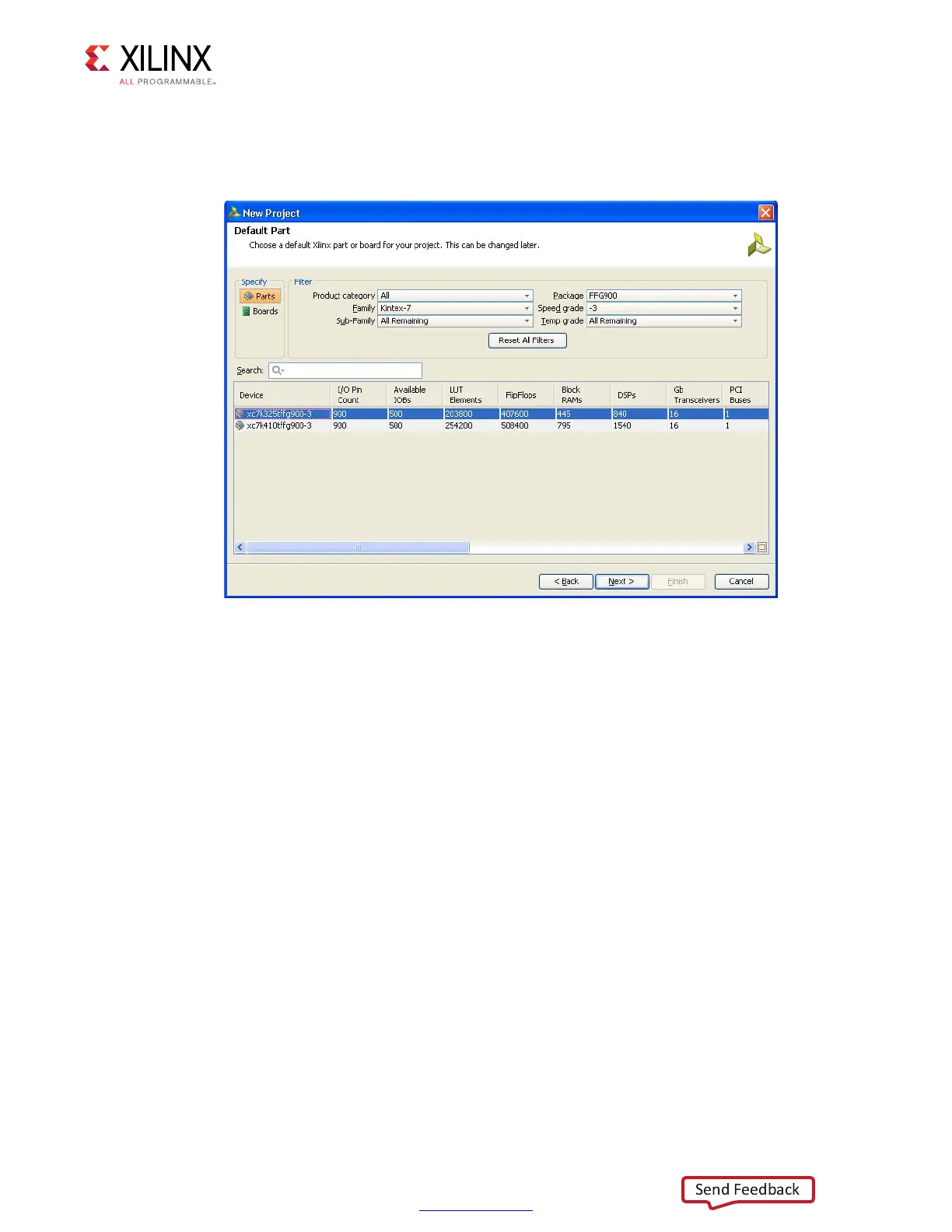

Figure 5-9: Default Part (Customized Window)
