Chapter 5: Multicontroller Design
2. Click Out-of-Context Settings to configure generation of synthesized checkpoints. To
enable the Out-of-Context flow, enable the check box. To disable the Out-of-Context
flow, disable the check box. The default option is Enable as shown in Figure 5-20.
3. MIG designs comply with “Hierarchical Design" flow in Vivado. For more information,
see the Vivado
Design Suite User Guide: Hierarchical Design (UG905) [Ref 5] and the
Vivado Design Suite Tutorial: Hierarchical Design (UG946) [Ref 6].
4. After generating the MIG design, the project window appears as shown in Figure 5-21.
X-Ref Target - Figure 5-20

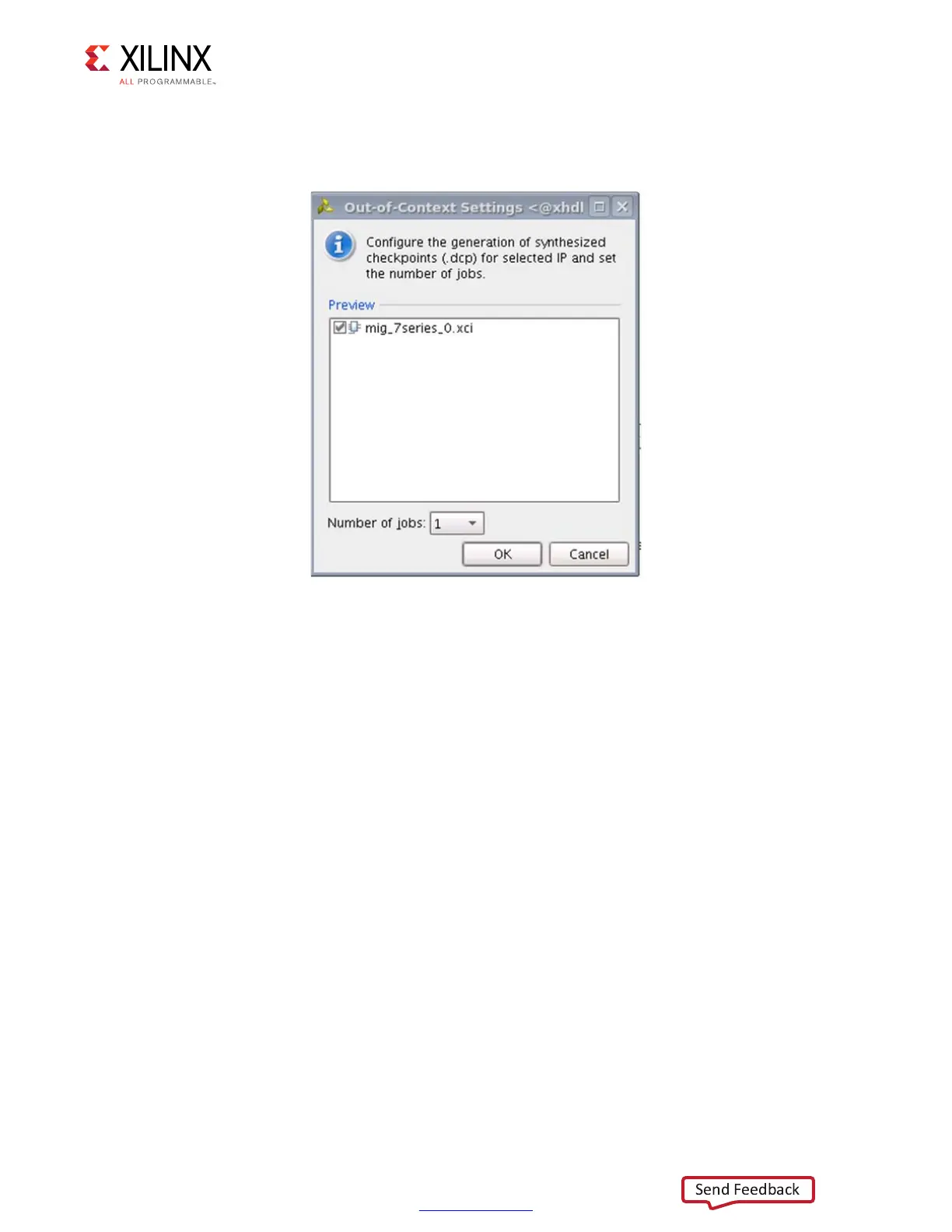

Figure 5-20: Out-of-Context Settings Window
