EasyConnect RCT 1.0

Humphrey Field Analyzer II-

series User Manual 2660021145640 A

G-40

4 After connection tests have been completed for all configured instruments, select NEXT to

continue to a final Completion screen where the results of all tests will be displayed (Figure

G.50, Figure G.51, and Figure G.52).

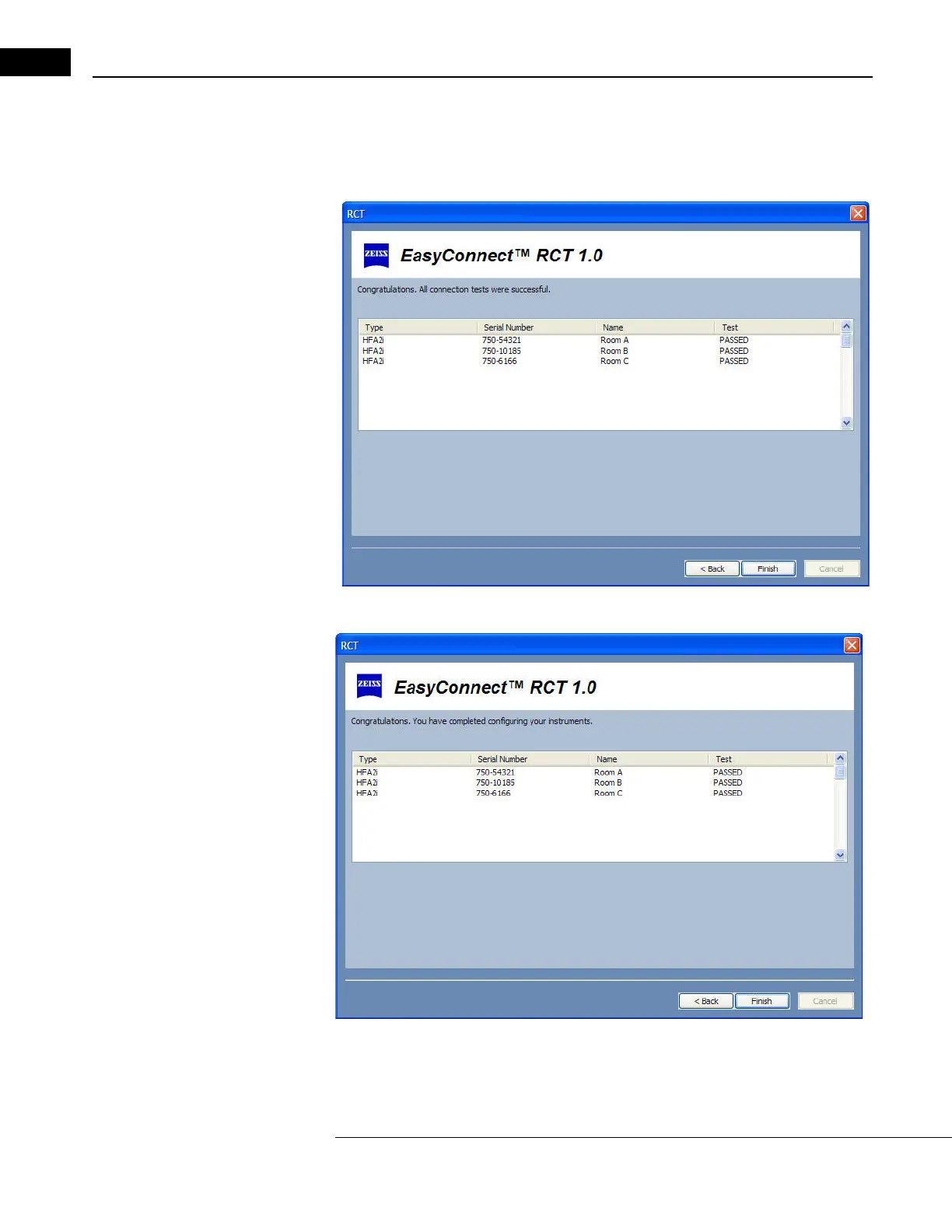

Figure G.50 Completion Screen in Test Mode (Pass)

Figure G.51 Completion Screen in Easy, Copy, or Custom Mode (Pass)

Table of Contents3
