13.2.2 Predefined Mapping Configurations
Four Channels
This configuration is defined as follows:
•
Ch.01 is L/Left: Output Ch.01 plays the CPL Left (L) audio channel.
•
Ch.02 is R/Right: Output Ch.02 plays the CPL Right (R) audio channel.
•
Ch.03 is C/Center: Output Ch.03 plays the CPL Center (C) audio channel.
•
Ch.04 is Input: Ch.04 is pass-through, meaning the output channel X plays the CPL
audio channel X.
• Ch.05 is S/Surround: Output Ch.05 plays the CPL Surround audio channel.
•
Ch.06–Ch.14: These channels are pass-through, meaning the output channel X plays
the CPL audio channel X. X will be a value between 6 and 14.
•
Ch.15 is H/Hearing Impaired: Output Ch.15 plays the CPL hearing impaired audio
channel.
•
Ch.16 is VI-N/Narration: Output Ch.16 plays the CPL narration/visually impaired
audio channel.

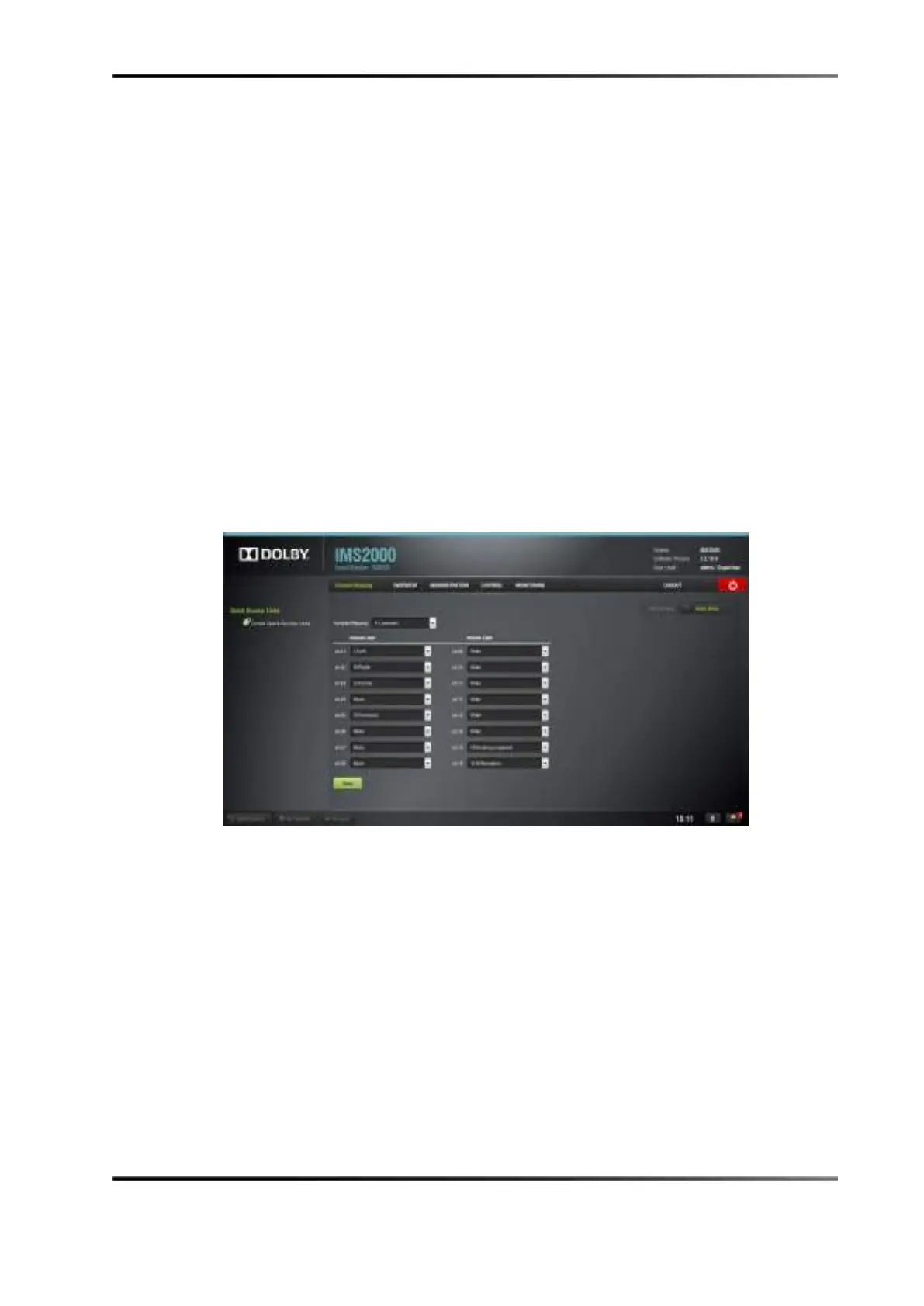

Figure 13-4 Audio Mapping Set to Four Channels
