5.2 Installing Hard-Disk Drives
Each hard-disk drive is shipped out of its chassis. Upon initial installation, insert each
drive into the IMS2000 hard-disk drive chassis carrier prior to powering up the projector.
Do not insert or remove a hard-disk drive if the unit is powered on. Each hard-disk drive
must be of the same make and model with identical storage capacity. We prohibit
intermixing SATA I drives with SATA II drives within the same RAID.
To install the hard-disk drives:
1. Release the lever of the hard-disk drive carrier by pressing the release tab.
Insert each hard-disk drive into the hard-disk drive slot with the handle open.
2. Push the handle in until it locks in to place.

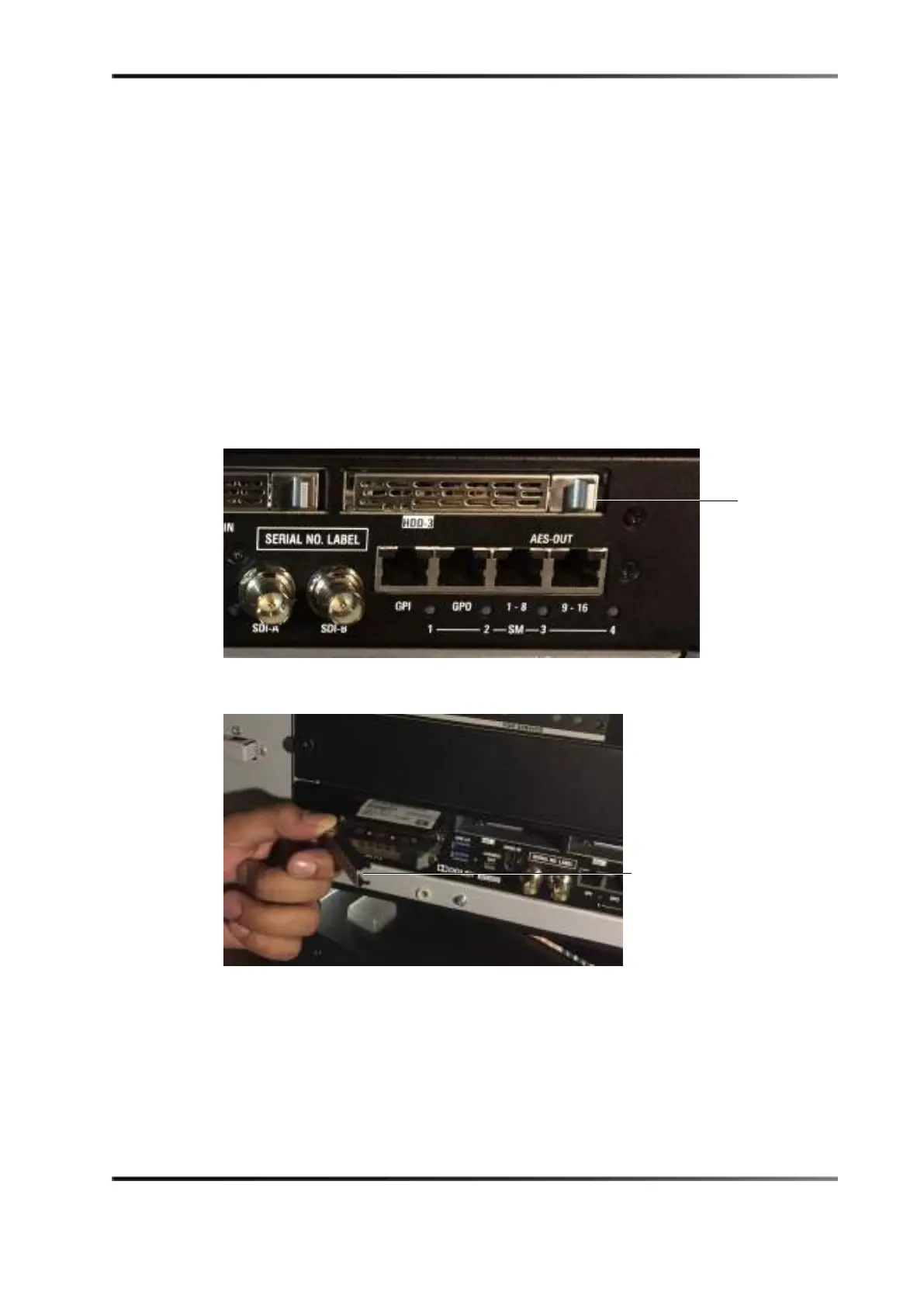

Figure 5-10 Hard-Disk Drive Latch
Figure 5-11 Hard-Disk Drive Latch
lever
Hard-disk drive
carrier handle
