5.4.1 GPI/GPO Pinout Information

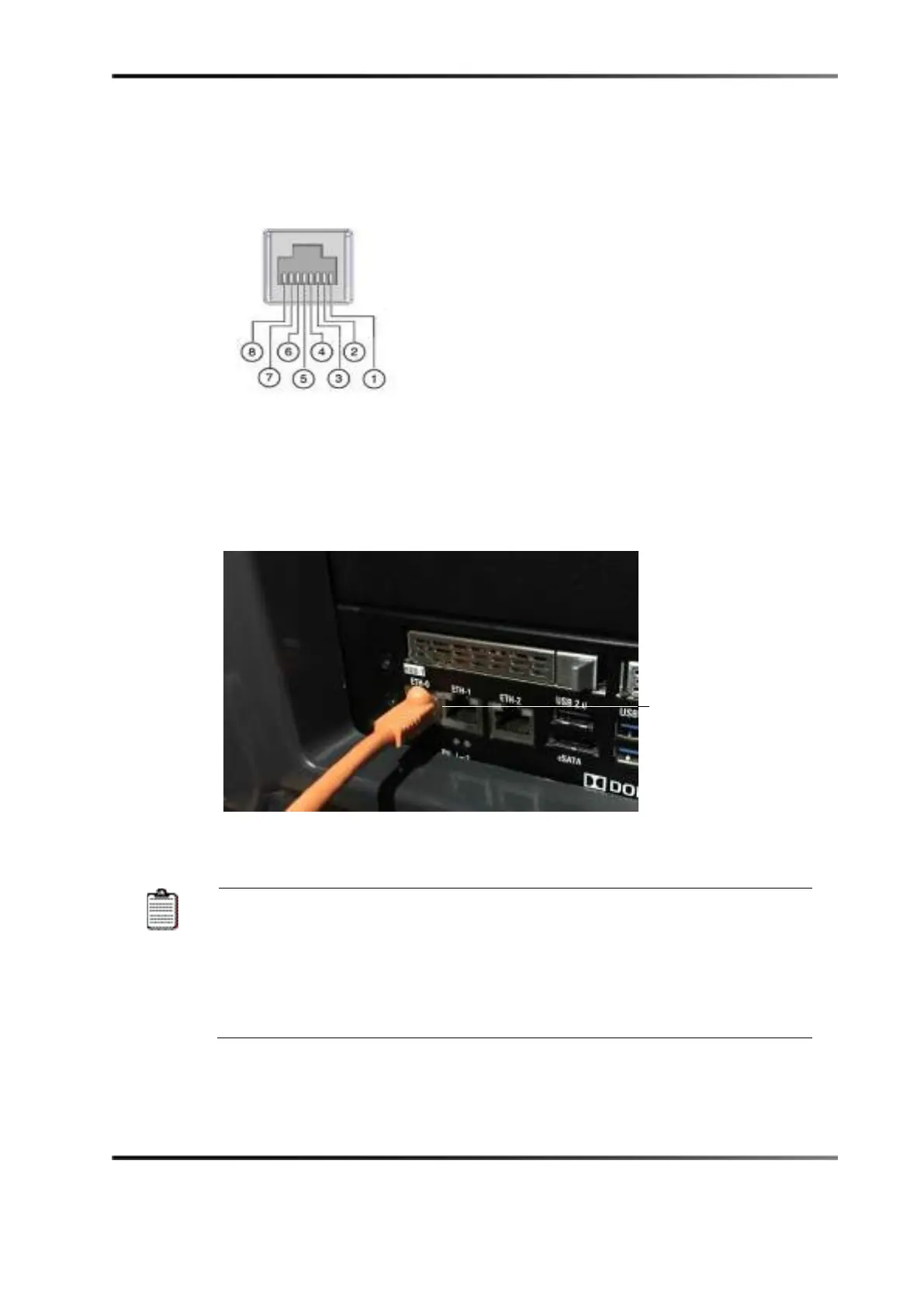

Figure 4-19 shows the RJ-45 pinouts.
Figure 5-19 RJ-45 Socket Pinout
5.5 Connecting the Ethernet Cable
To install the Ethernet cable, connect one end of the cable to an IMS2000 Ethernet port,
then connect the other end of the cable to a laptop or a network switch.
Figure 5-20 Ethernet Connector
Note:
Ethernet ports (
ETH-1
and
ETH-2
) are set to DHCP by default. All IMS2000
boards are shipped from the factory with the following default IP address
for ETH-0:
IP: 192.168.100.50
SM: 255.255.255.0
GW: Blank
For more information, refer to Chapter 28.
Ethernet
cable
