Dolby

IMS2000 Installation and User’s Manual

IMS.OM.004730.DRM Issue 3 297

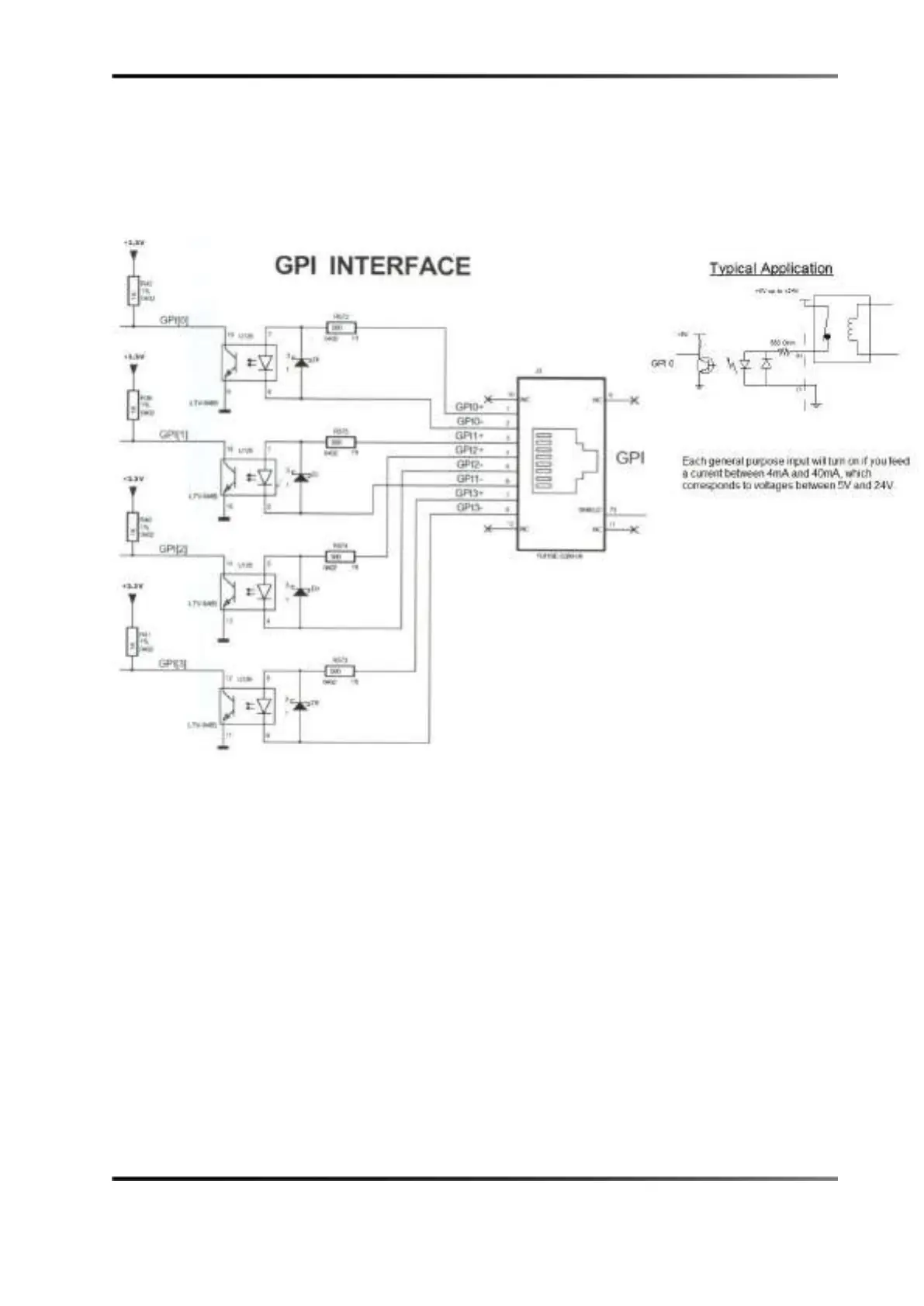

Chapt er 2 2 General Purpose Input Connection Diagram
