Dolby
®
IMS2000 Installation and User’s Manual
IMS.OM.004730.DRM Issue 3 23
5.4 Connecting the GPI and GPO Cables
To connect the GPI and GPO cables to the IMS2000:
1. Connect one end of a shielded CAT5 or CAT6 cable to the GPI port on the IMS2000.
2. Connect the other end of the shielded CAT5 or CAT6 cable to whichever automation
controller is available or required.
3. Connect another shielded CAT5 or CAT6 cable to the GPO port on the IMS2000.
4. Connect the other end of the shielded CAT5 or CAT6 cable to your automation
controller.

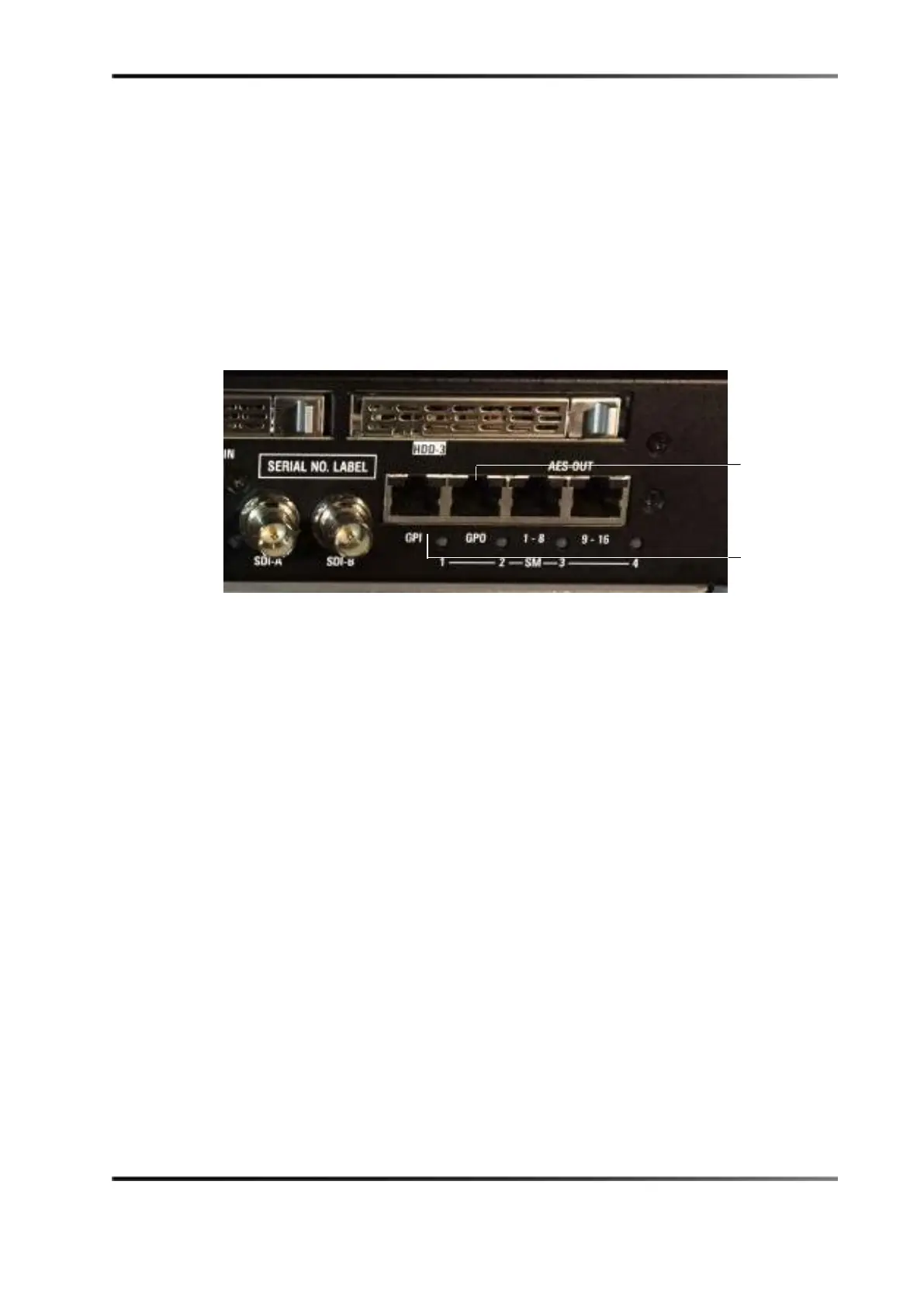

Figure 5-18 GPI and GPO Ports
