7.3 Connecting Audio Cables

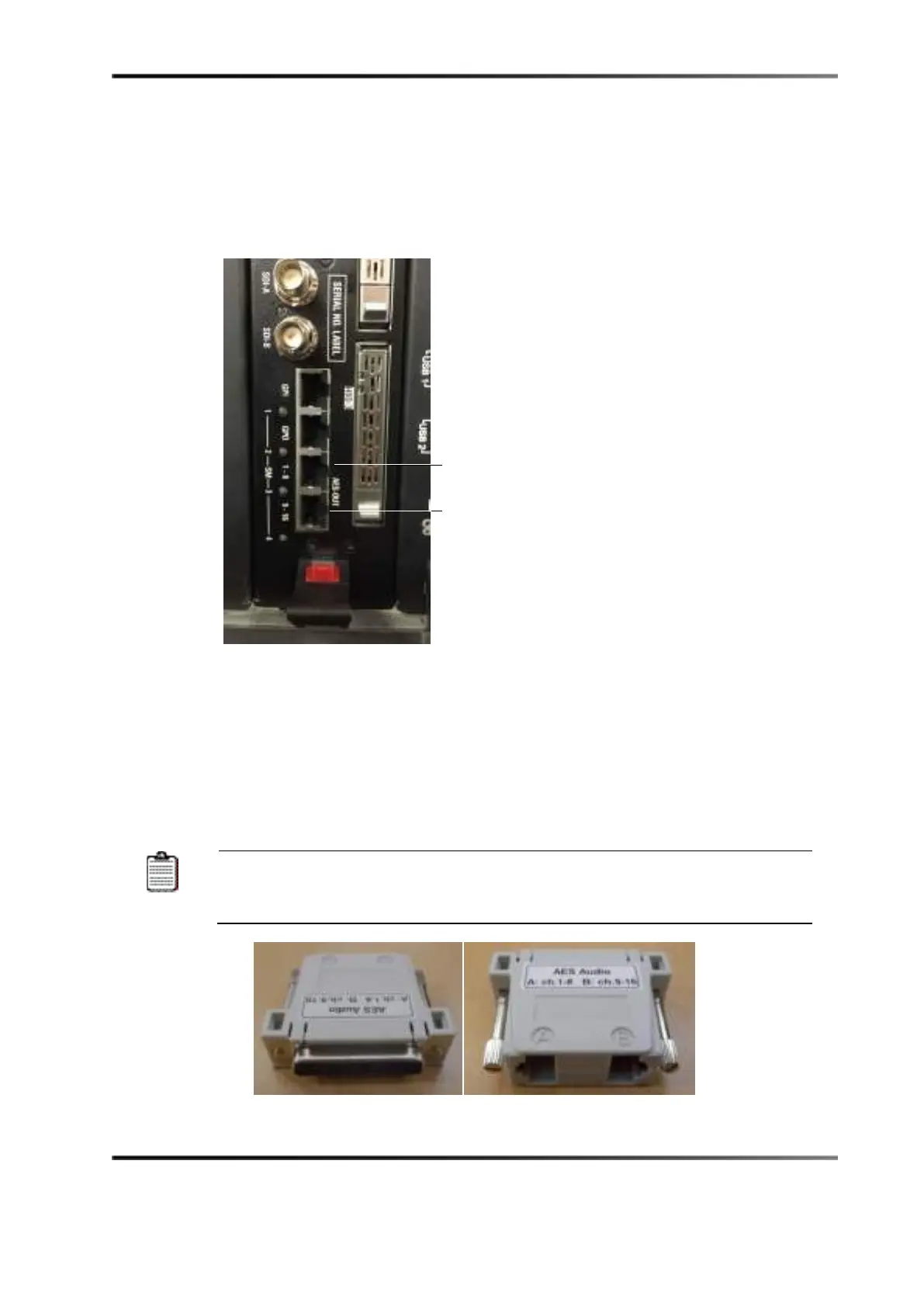

Figure 7-9 Audio Connectors
1. Connect one end of the shielded CAT5 or CAT6 cable to the AES-OUT 1-8 connector
on the IMS2000 board.
2. Connect the other end of the shielded CAT5 or CAT6 cable to the audio processor.
3. Take another shielded CAT5 or CAT6 cable, and connect it to the AES-OUT 9-16
connector on the IMS2000 board.
4. Plug the other end of the shielded CAT5 or CAT6 cable to the audio processor.
Note:
If the audio processor does not have RJ-45 connectors but has a single 25-
pin D-connector, then you will need to use the RJ-45 to 25-pin D-connector
converter that is provided with the IMS2000.
Figure 7-10 RJ-45 to 25-Pin D-Connector Converter
AES out 1–8
AES out 9–16
