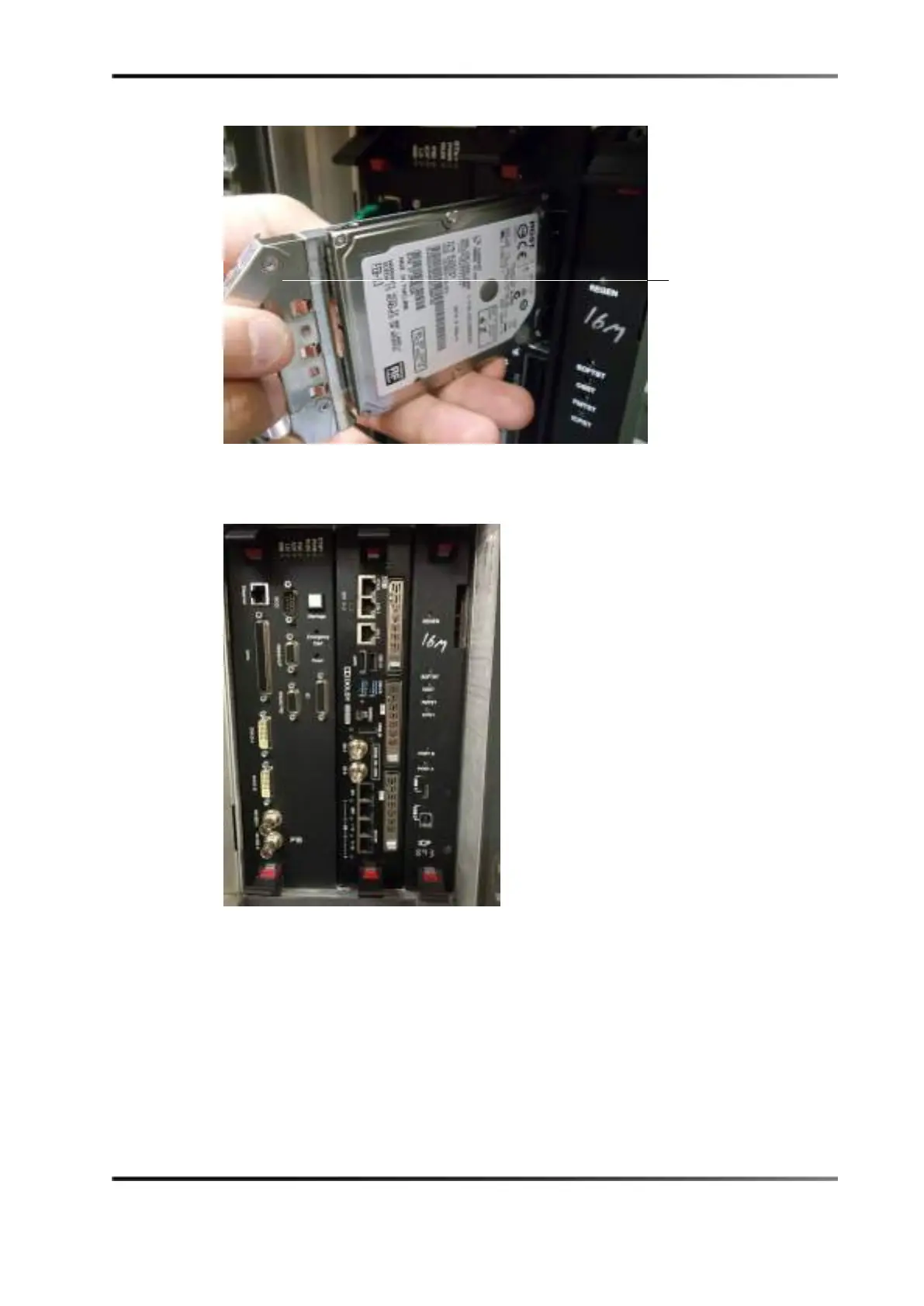

Figure 7-7 Inserting the Hard-Disk Drive
4. Repeat steps 1–3 for the remaining hard-disk drives.
Figure 7-8 Hard-Disk Drives Inserted
Spring-loaded
hard-disk drive
carrier handle
