Dolby
®
IMS2000 Installation and User’s Manual
IMS.OM.004730.DRM Issue 3 295

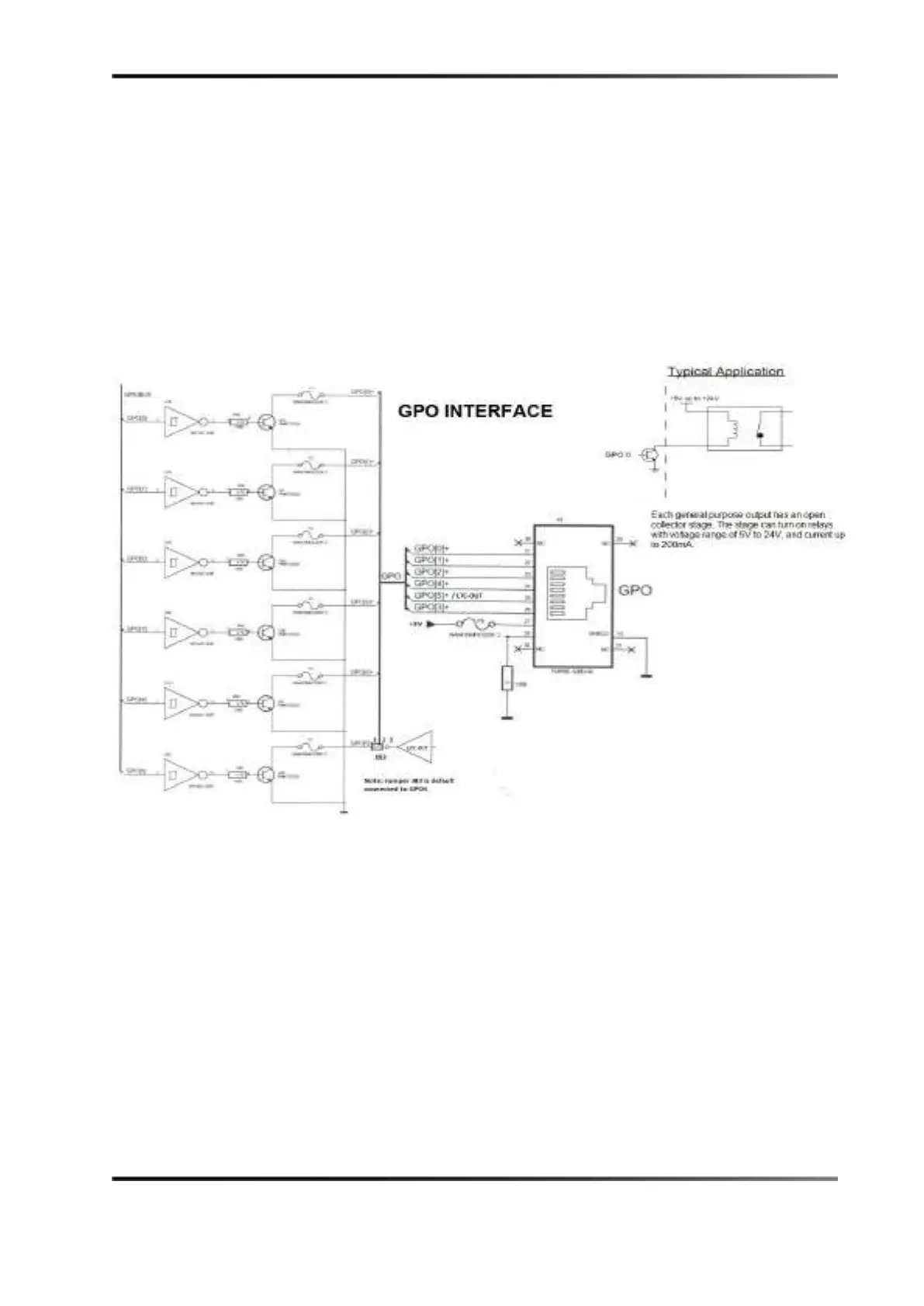

Chapt er 2 1 General Purpose Output
Connection Diagram
21.1 LTC
To enable the linear timecode (LTC) output feature on the IMS2000:
1. Attach a jumper at the J83 header.
LTC is the jumper configurable on header J83.
2. Connect the left and middle pin (pins 2 and 3).
To obtain LTC output, use the optional IMS2000 GPIO out with LTC out cable (part
number CBL-GPO-LTCO-IMS2-25).
