4.5 IMS2000 Top and Front Views

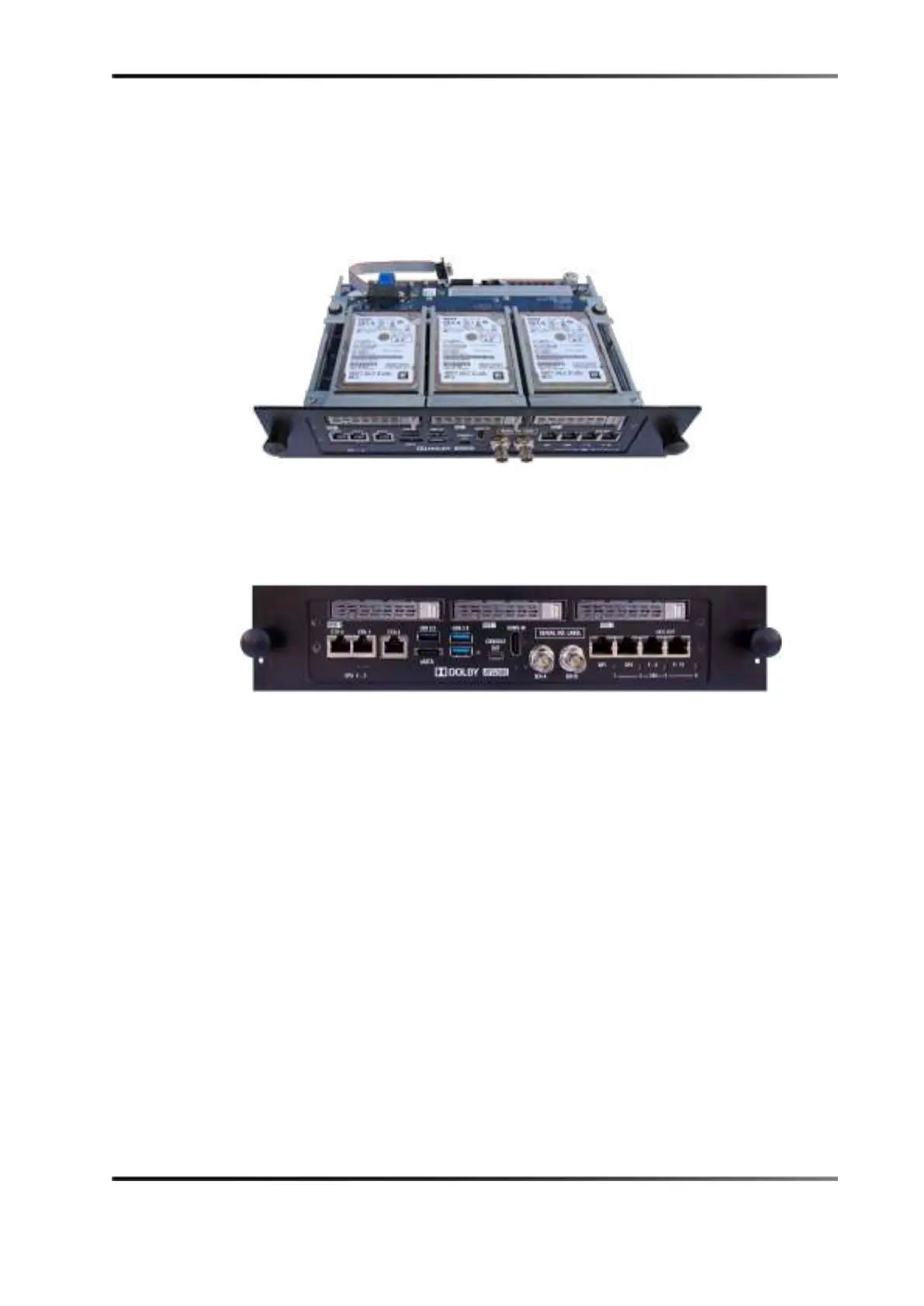

Following are the IMS2000 top and front views.
Figure 4-1 IMS2000: Top View
Figure 4-2 IMS2000: Front View
4.6 Ethernet
The IMS2000 has three built-in Gigabit Ethernet connectors.
From the left, the ports are identified as
ETH0, ETH1, and ETH2.
4.7 eSATA
The eSATA port is used for ingesting content.
