316 Dolby

IMS2000 Installation and User’s Manual

IMS.OM.004730.DRM Issue 3

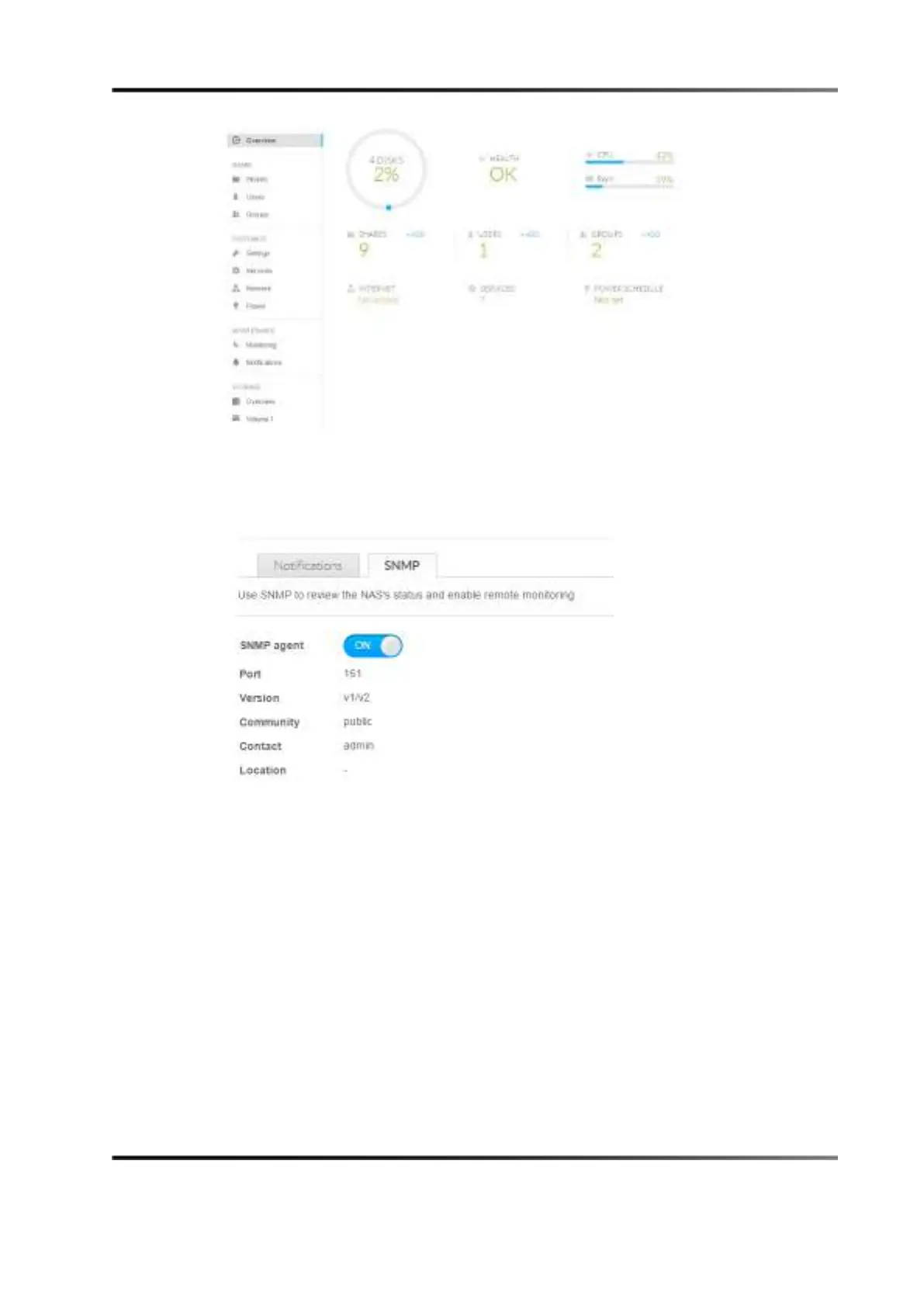

Figure 30-2 Device Manager Window

4. Click on the SNMP tab.

5. Verify the

SNMP agent is set to ON.

Figure 30-3 Notifications Window
