| Interface Configuration
Port Configuration
– 129 –
PARAMETERS
These parameters are displayed in the web interface:
◆ Port – Port identifier.
◆ Type – Indicates the port type. (1000Base-T, 1000Base SFP)
◆ Name – Interface label.
◆ Admin – Shows if the port is enabled or disabled.
◆ Oper Status – Indicates if the link is Up or Down.
◆ Media Type – Media type used. (Options: Ports 1-2 – Copper-Forced,
SFP-Forced, or SFP-Preferred-Auto, Ports 3-24 – SFP-Forced;
Default: Ports 1-2 – SFP-Preferred-Auto, Ports 3-24 – SFP-Forced)
◆ Autonegotiation – Shows if auto-negotiation is enabled or disabled.
◆ Oper Speed Duplex – Shows the current speed and duplex mode.
◆ Oper Flow Control – Shows if flow control is enabled or disabled.
WEB INTERFACE
To display port connection parameters:
1. Click Interface, Port, General.
2. Select Show Information from the Action List.

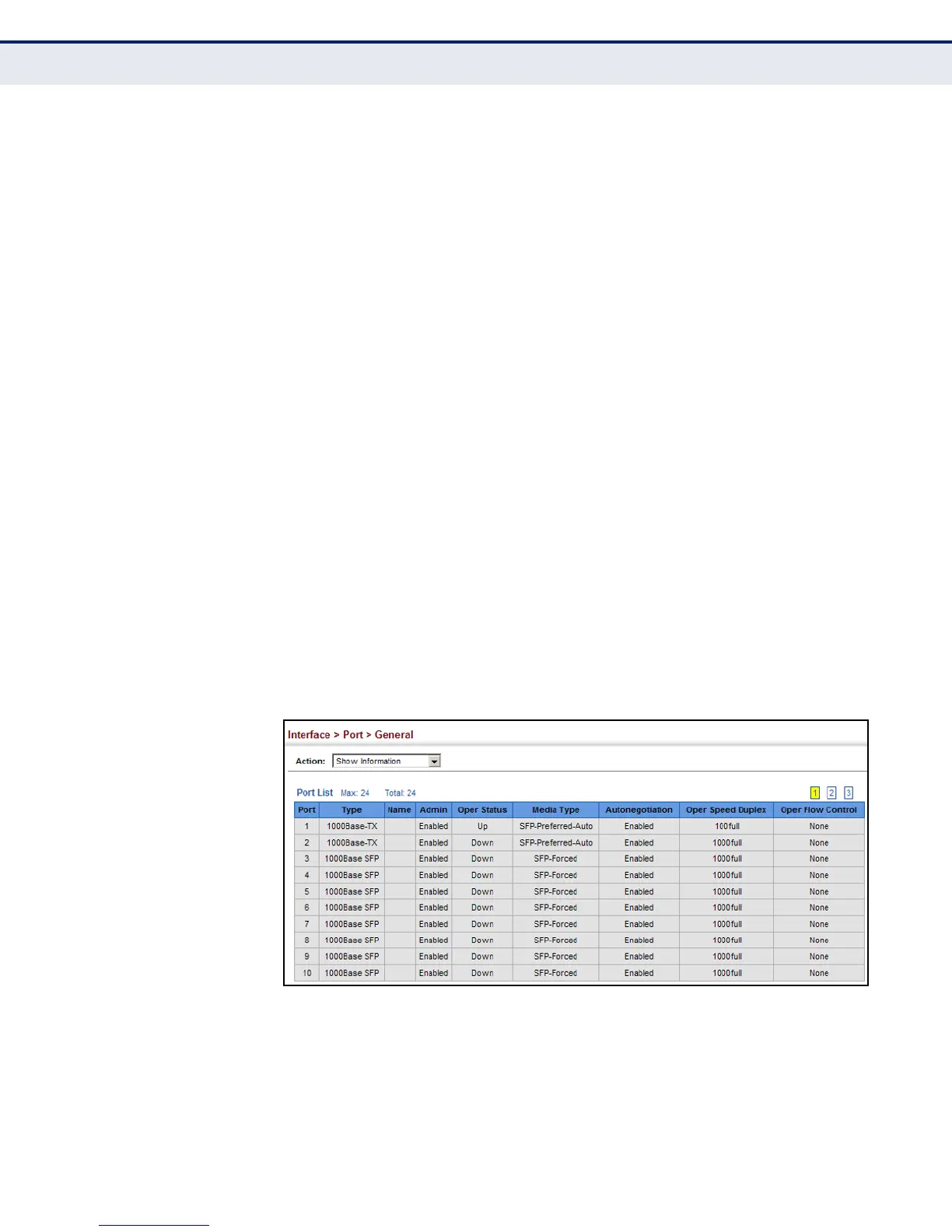

Figure 25: Displaying Port Information
