| Interface Configuration
Port Configuration
– 134 –
WEB INTERFACE
To show a list of port statistics:
1. Click Interface, Port, Statistics.
2. Select the statistics mode to display (Interface, Etherlike or RMON).
3. Select a port from the drop-down list.
4. Use the Refresh button at the bottom of the page if you need to update
the screen.

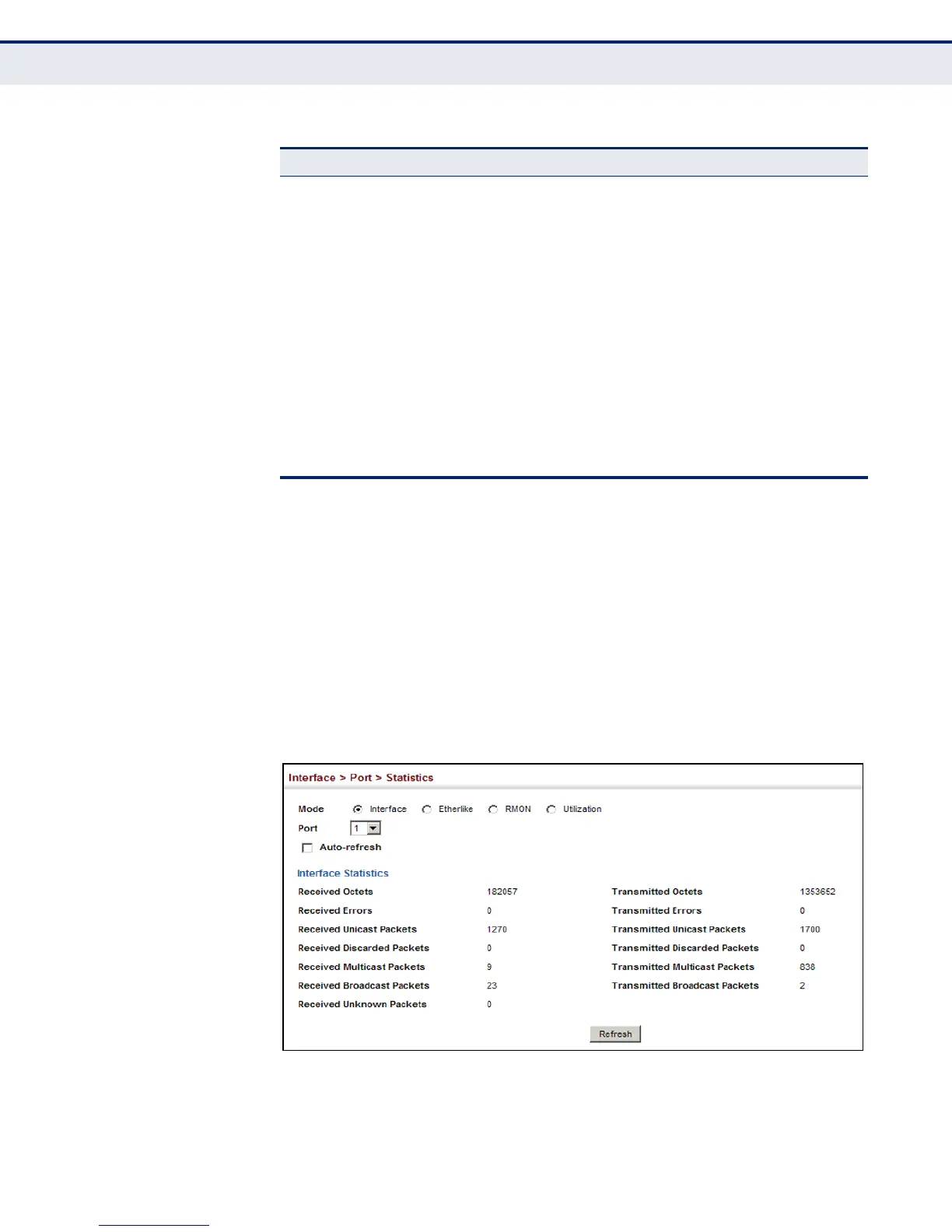

Figure 29: Showing Port Statistics (Table)
65-127 Byte Packets
128-255 Byte Packets
256-511 Byte Packets
512-1023 Byte Packets
1024-1518 Byte Packets
1519-1536 Byte Packets
The total number of packets (including bad packets) received
and transmitted where the number of octets fall within the
specified range (excluding framing bits but including FCS
octets).
Utilization Statistics
Input Octets per second Number of octets entering this interface per second.
Input Packets per second Number of packets entering this interface per second.
Input Utilization The input utilization rate for this interface.
Output Octets per second Number of octets leaving this interface per second.
Output Packets per
second
Number of packets leaving this interface per second.
Output Utilization The output utilization rate for this interface.
Table 5: Port Statistics (Continued)
Parameter Description
