C
HAPTER
6
| VLAN Configuration
IEEE 802.1Q VLANs
– 161 –
2. Select Edit Member by VLAN from the Step list.
3. Set the Interface type to display as Port or Trunk.
4. Modify the settings for any interface as required. Remember that
Membership Type cannot be changed until an interface has been added
to another VLAN and the PVID changed to anything other than 1.
5. Click Apply.

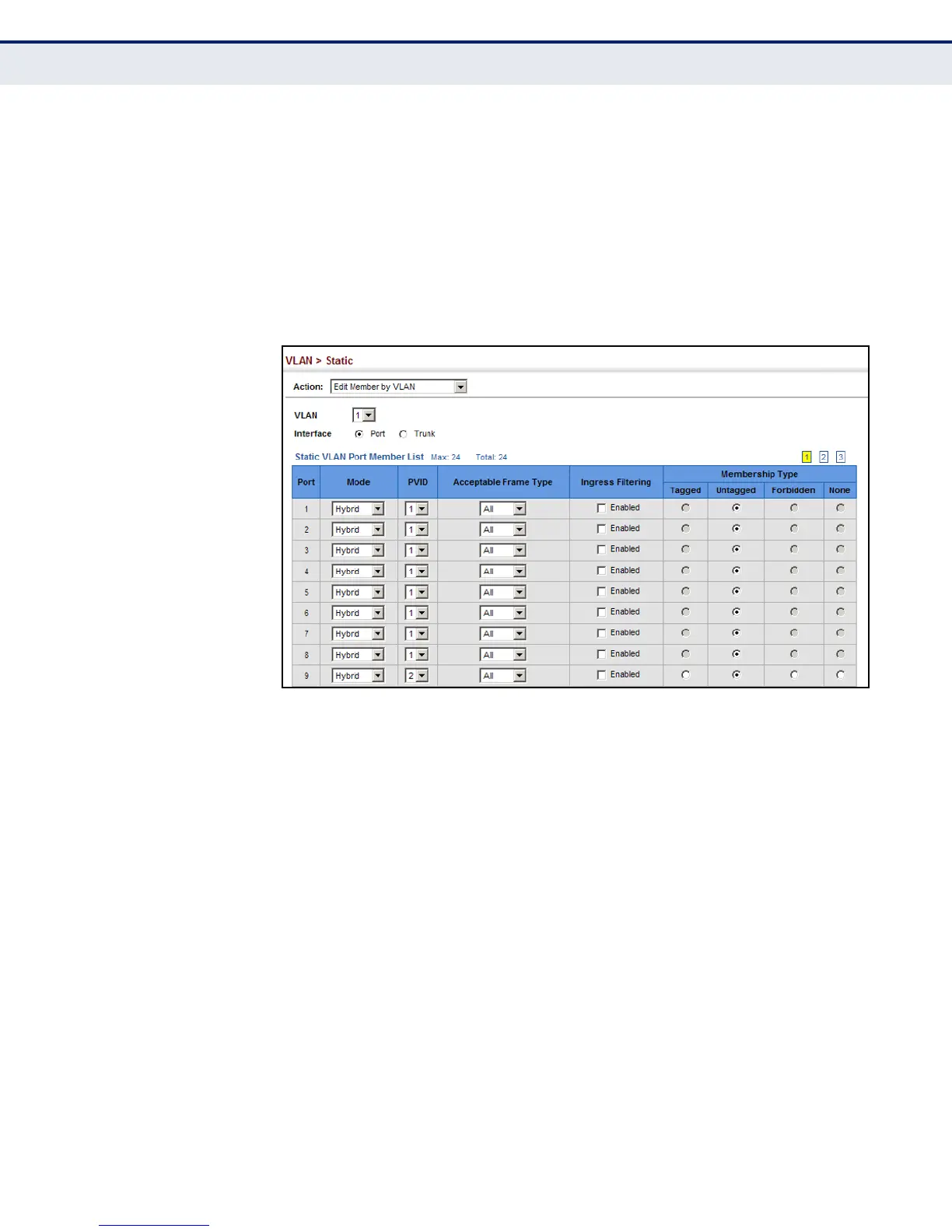

Figure 55: Configuring Static Members by VLAN Index
To configure static members by interface:
1. Click VLAN, Static.
2. Select Edit Member by Interface from the Step list.
3. Select a port or trunk configure.
4. Modify the settings for any interface as required.
5. Click Apply.
