Edge-Core ECS4610-24F

C HAPTER 14 | Basic Administration Protocols
Remote Monitoring
– 381 –
WEB INTERFACE
To configure an RMON event:
1. Click Administration, RMON.
2. Select Configure Global from the Step list.
3. Select Add from the Action list.
4. Click Event.
5. Enter an index number, the type of event to initiate, the community
string to send with trap messages, the name of the person who created
this event, and a brief description of the event.
6. Click Apply

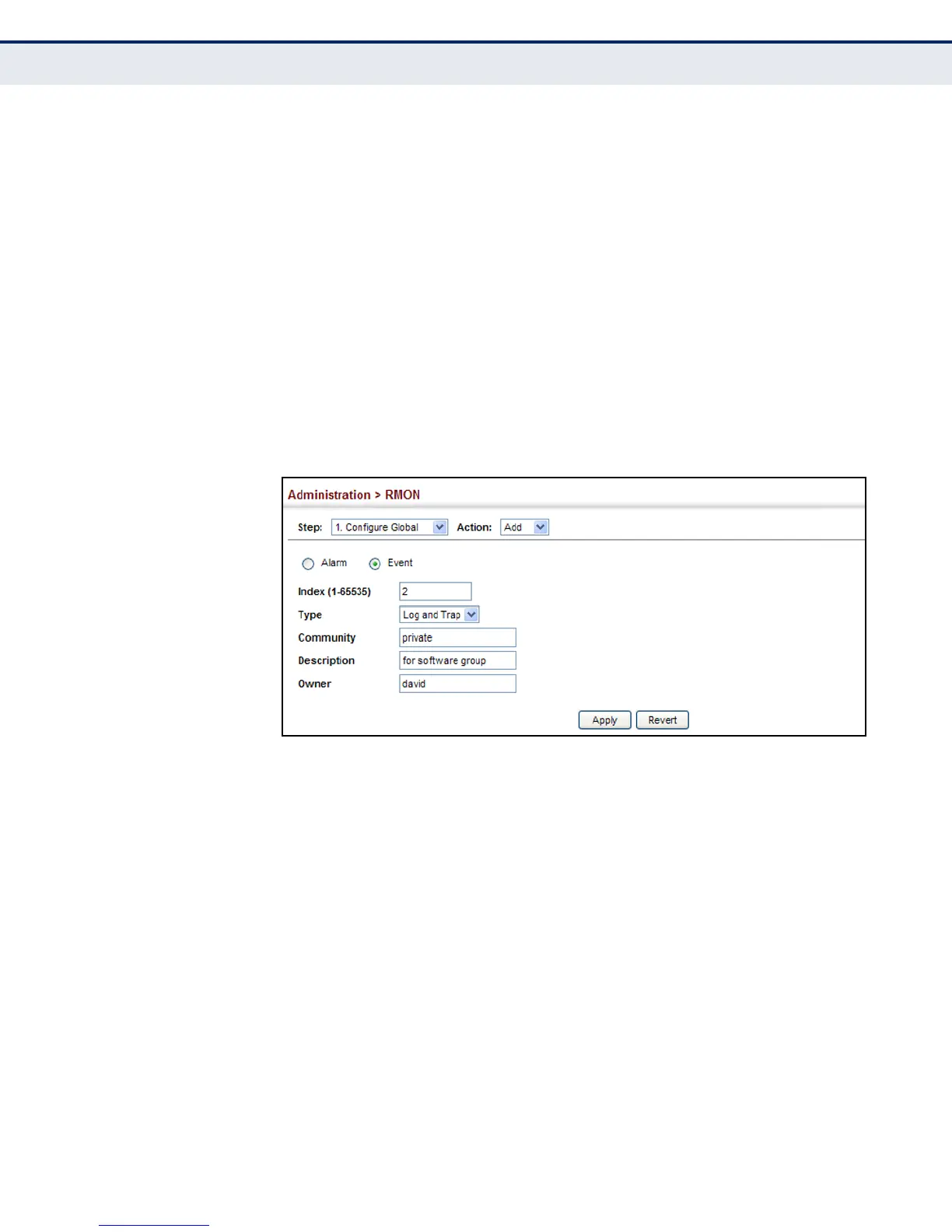

Figure 217: Configuring an RMON Event
To show configured RMON events:
1. Click Administration, RMON.
2. Select Configure Global from the Step list.
3. Select Show from the Action list.
4. Click Event.
