C
HAPTER
15
| Multicast Filtering
Layer 2 IGMP (Snooping and Query)
– 398 –

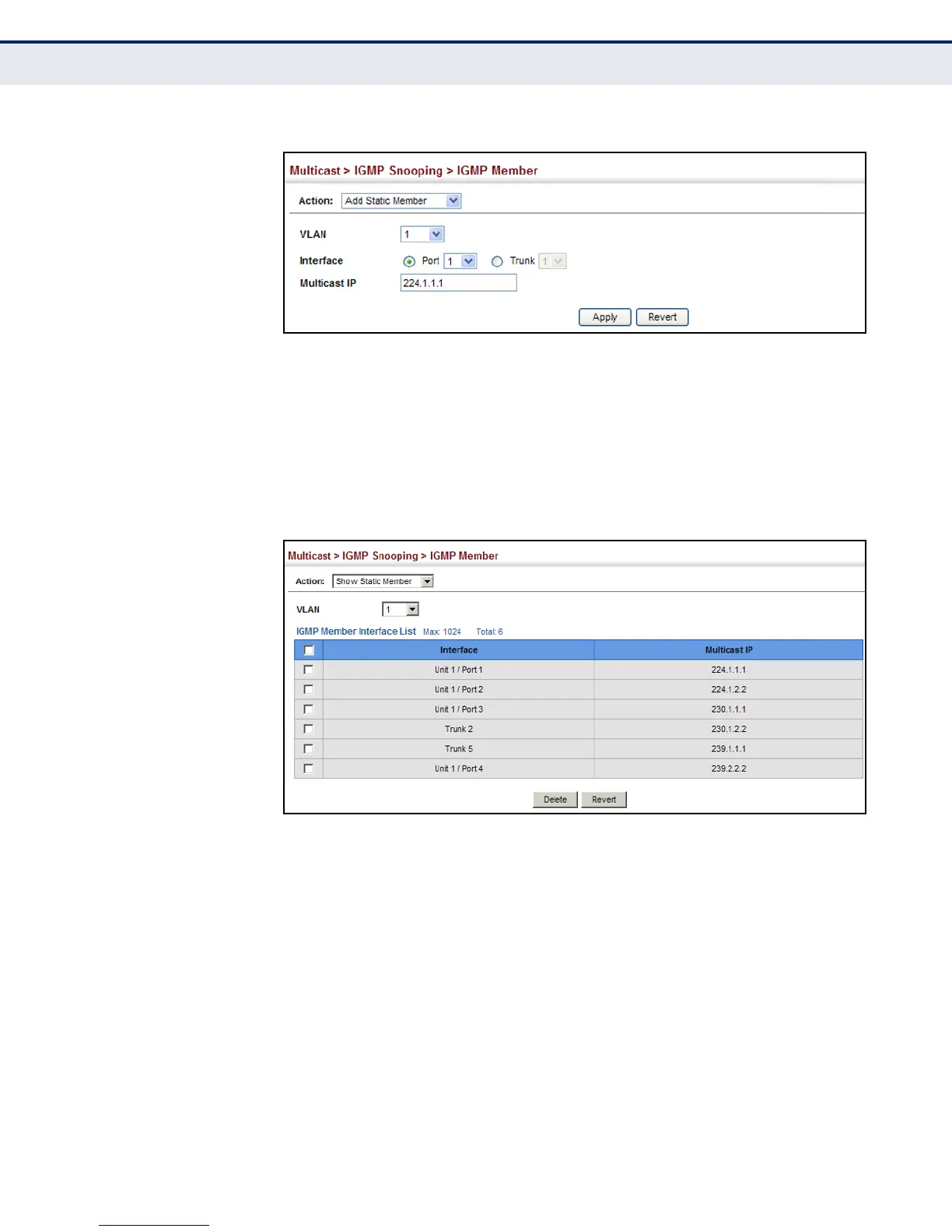

Figure 231: Assigning an Interface to a Multicast Service
To show the static interfaces assigned to a multicast service:
1. Click Multicast, IGMP Snooping, IGMP Member.
2. Select Show Static Member from the Action list.
3. Select the VLAN for which to display this information.
Figure 232: Showing Static Interfaces Assigned to a Multicast Service
To display information about all multicast groups, IGMP Snooping or
multicast routing must first be enabled on the switch. To show all of the
interfaces statically or dynamically assigned to a multicast service:
1. Click Multicast, IGMP Snooping, IGMP Member.
2. Select Show Current Member from the Action list.
3. Select the VLAN for which to display this information.
