Configuring the Routing Information Protocol
– 490 –
PARAMETERS
These parameters are displayed in the web interface:
◆ By Address – Adds a network to the RIP routing process.
â–
Subnet Address – IP address of a network directly connected to
this router. (Default: No networks are specified)
â–
Prefix Length – A decimal value indicating how many contiguous
bits (from the left) of the address comprise the network portion of
the address. This mask identifies the network address bits used for
the associated routing entries.
◆ By VLAN – Adds a Layer 3 VLAN to the RIP routing process. The VLAN
must be configured with an IP address. (Range: 1-4093)
WEB INTERFACE
To add a network interface to RIP:
1. Click Routing Protocol, RIP, Network.
2. Select Add from the Action list.
3. Add an interface that will participate in RIP.
4. Click Apply.

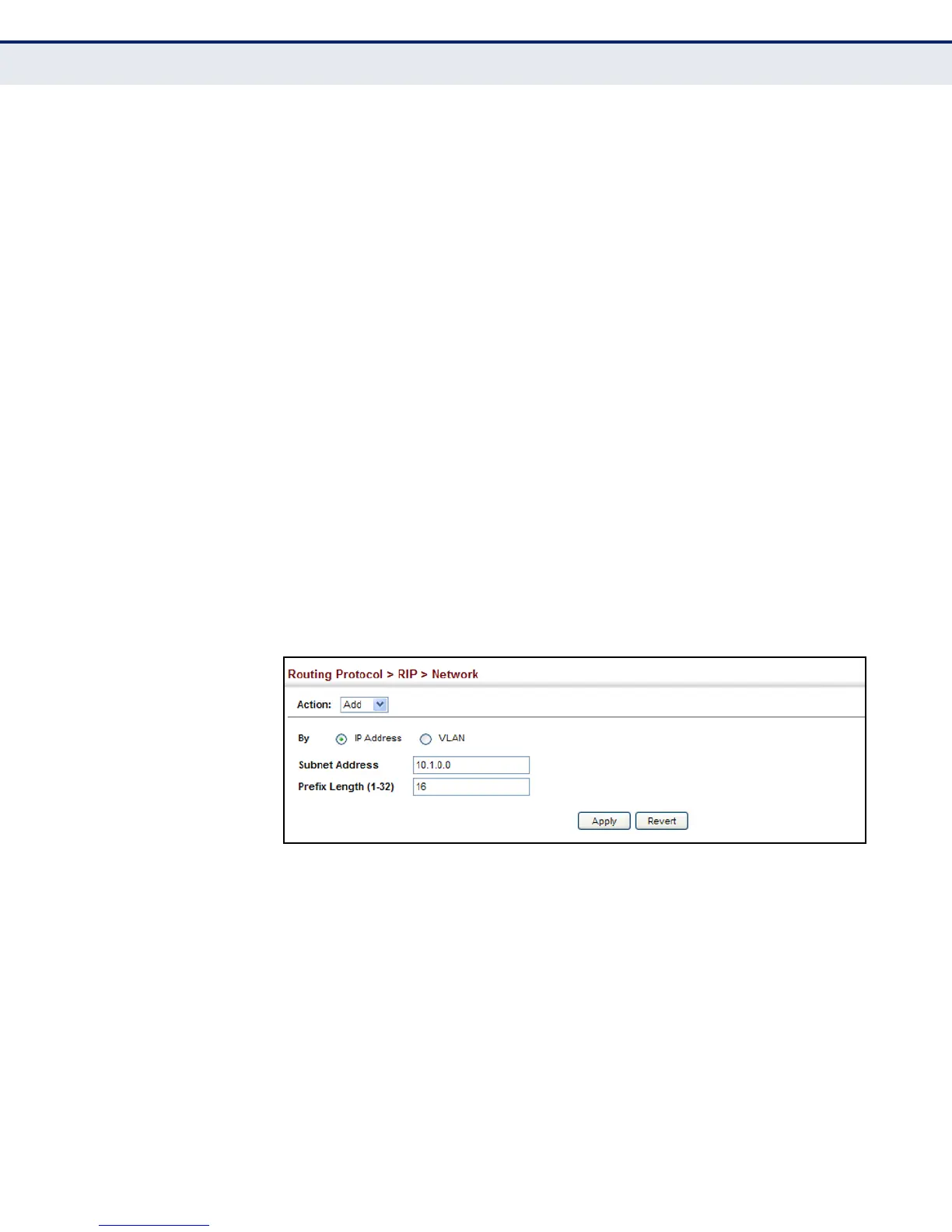

Figure 311: Adding Network Interfaces to RIP
To show the network interfaces using RIP:
1. Click Routing Protocol, RIP, Network.
2. Select Show from the Action list.
3. Click IP Address or VLAN.
