| Unicast Routing
Configuring the Open Shortest Path First Protocol (Version 2)
– 506 –
WEB INTERFACE
To define an OSPF area and the interfaces that operate within this area:
1. Click Routing Protocol, OSPF, Network Area.
2. Select Add from the Action list.
3. Configure a backbone area that is contiguous with all the other areas in
the network, and configure an area for all of the other OSPF interfaces.
4. Click Apply

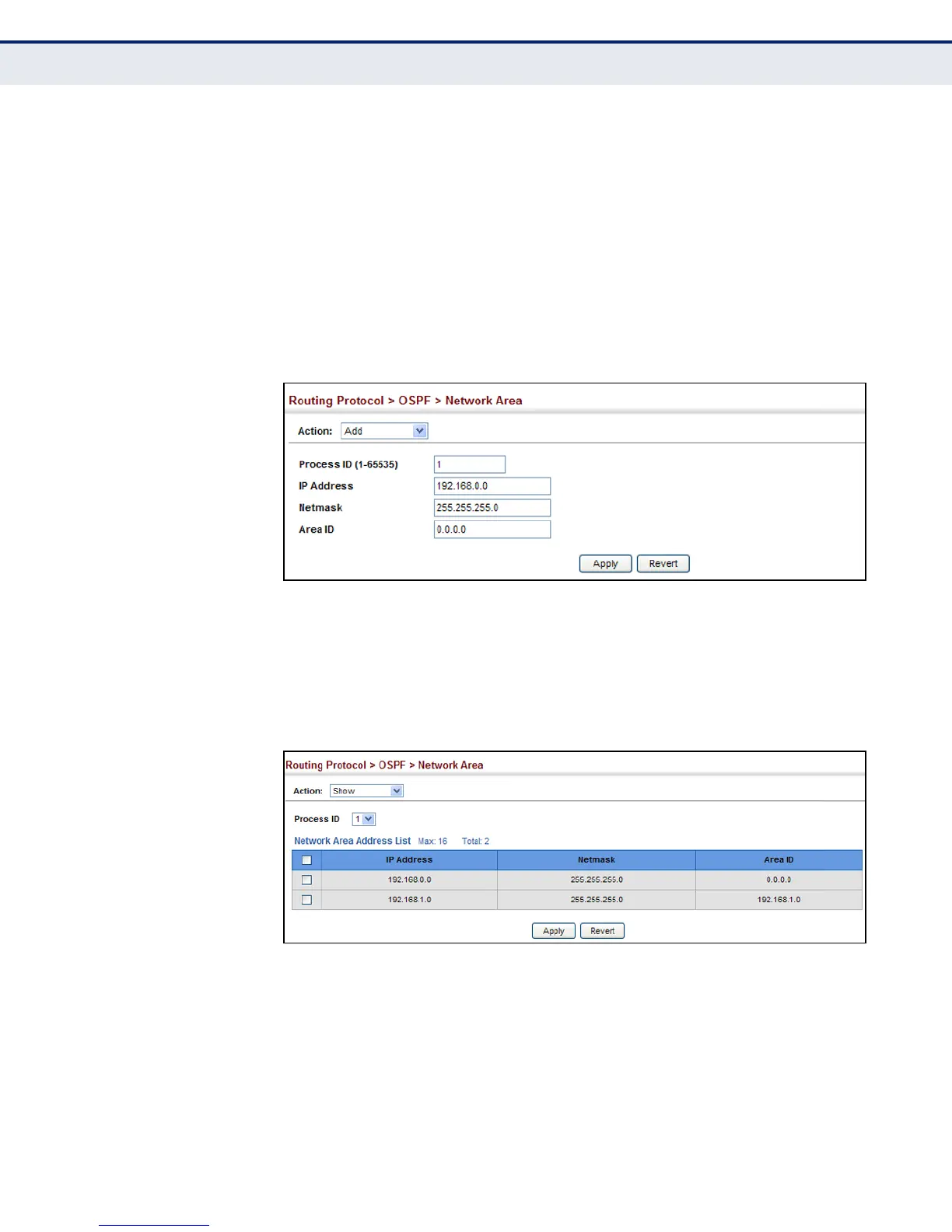

Figure 328: Defining OSPF Network Areas Based on Addresses
To to show the OSPF areas and the assigned interfaces:
1. Click Routing Protocol, OSPF, Network Area.
2. Select Show from the Action list.
Figure 329: Showing OSPF Network Areas
To to show the OSPF process identifiers:
1. Click Routing Protocol, OSPF, Network Area.
2. Select Show Process from the Action list.
