Chapter 4 Disassembly / Assembly and Adjustments
NOTE
Check the ACTUATOR REGI OUT and the ACTUATOR REGI IN movement, after
the procedure 9 is completed.

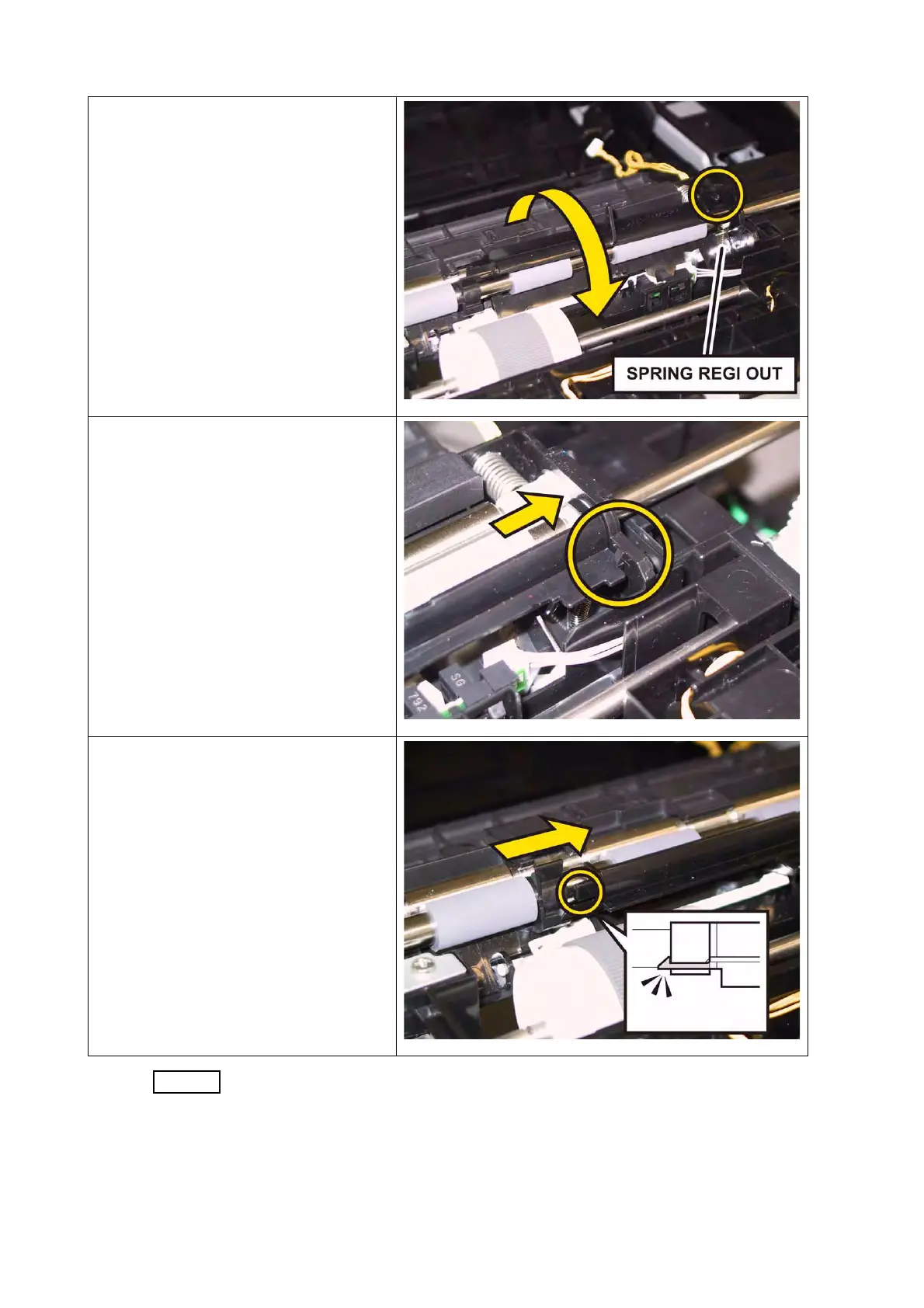

7) 7) Close the ACTUATOR REGI OUT
by inserting the boss of the ACTUA-
TOR REGI OUT into the SPRING
REGI OUT.
8) 8) Shift the ACTUATOR REGI OUT
to left, fix the CHUTE UP using the
hook.
9) 9) Attach the ACTUATOR REGI
ROLL M by mating the hole of the
ACTUATOR REGI ROLL M with
the tab of the ACTUATOR REGI
OUT. Fix it using the hook of the
ACTUATOR REGI OUT.
