Fuji Xerox DocuPrint CM305 df Service Manual

4 - 87
Chapter 4 Disassembly / Assembly and Adjustments

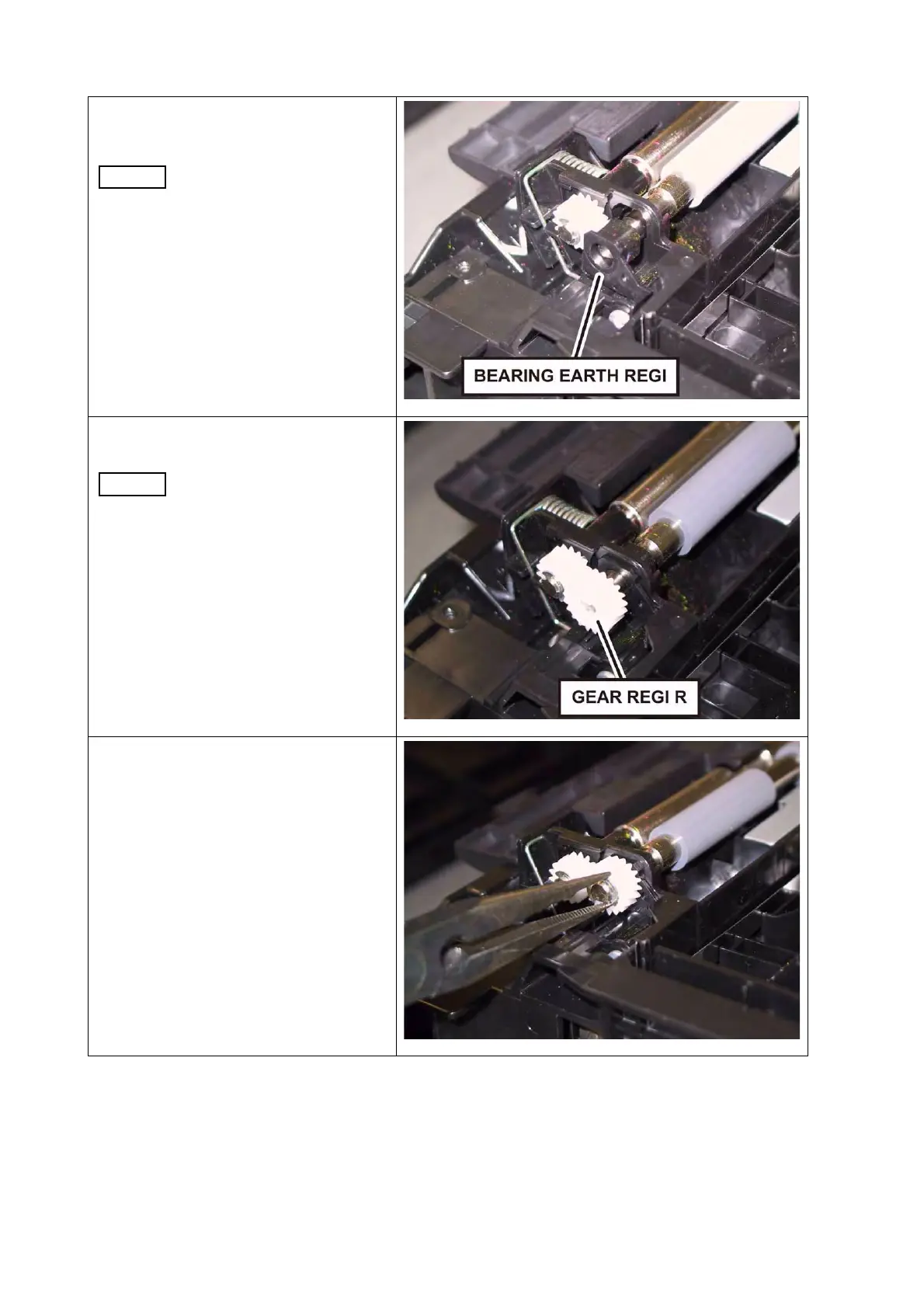

4) Attach the BEARING EARTH REGI
to the ROLL ASSY REGI.
NOTE
When carrying out the work
this procedure, it is easier
to push the ROLL REGI
METAL (PL3.2.10) to
frontward.
5) Attach the GEAR REGI R to the
ROLL ASSY REGI.
NOTE
When carrying out the work
this procedure, it is easier
to push the ROLL REGI
METAL (PL3.2.10) to
frontward.
6) Secure the GEAR REGI R to the
ROLL ASSY REGI with the E-ring
by using the pliers.
