Fuji Xerox DocuPrint CM305 df Service Manual

4 - 96
Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]

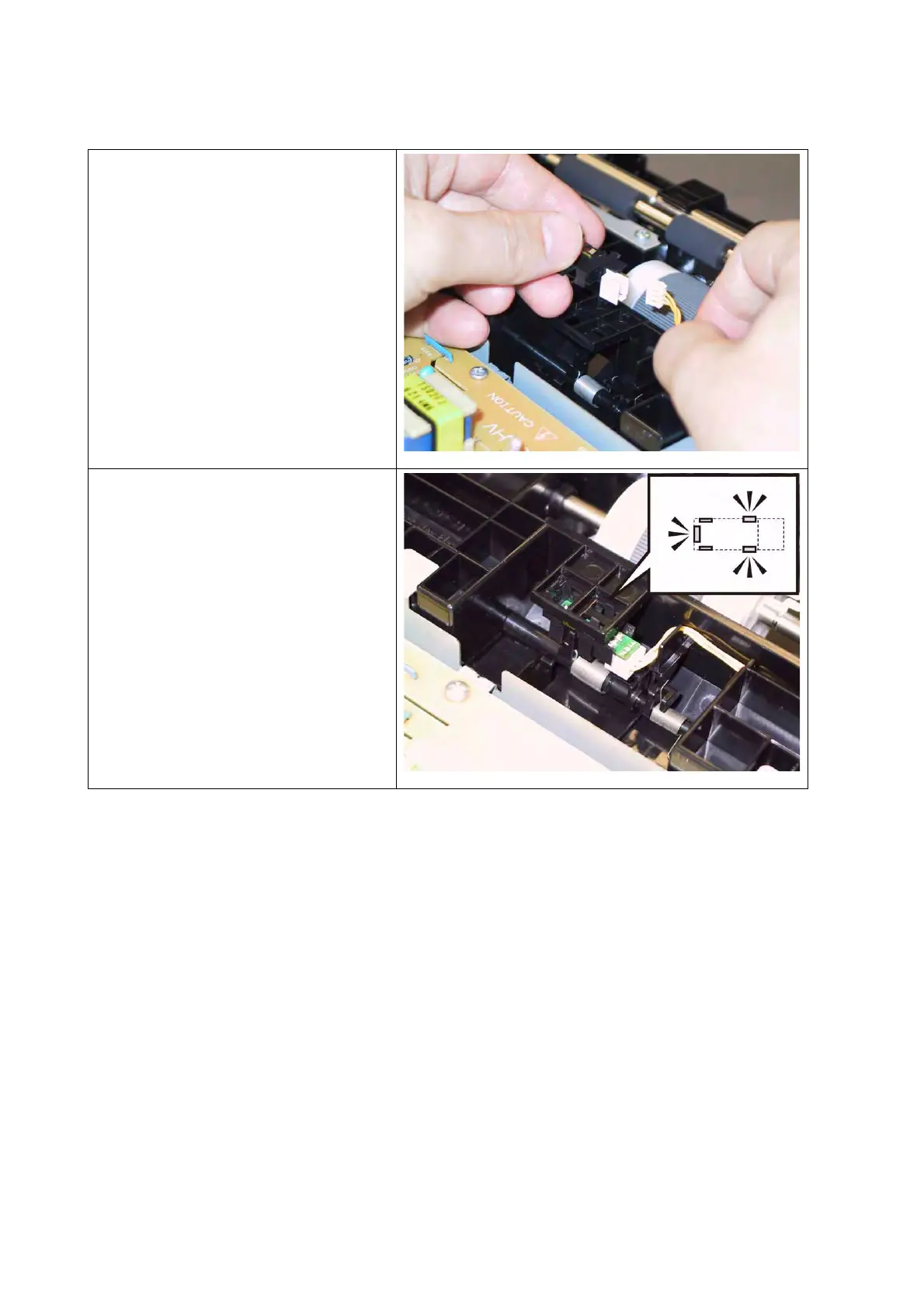

1) Engage the connector (P/J234) of the
SENSOR PHOTO: CST NO PAPER.
2) Replace the SENSOR PHOTO: CST
NO PAPER to the FEEDER ASSY
MG AIO by mating the hook of the
SENSOR PHOTO: CST NO PAPER
with its mounting position.
