Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]

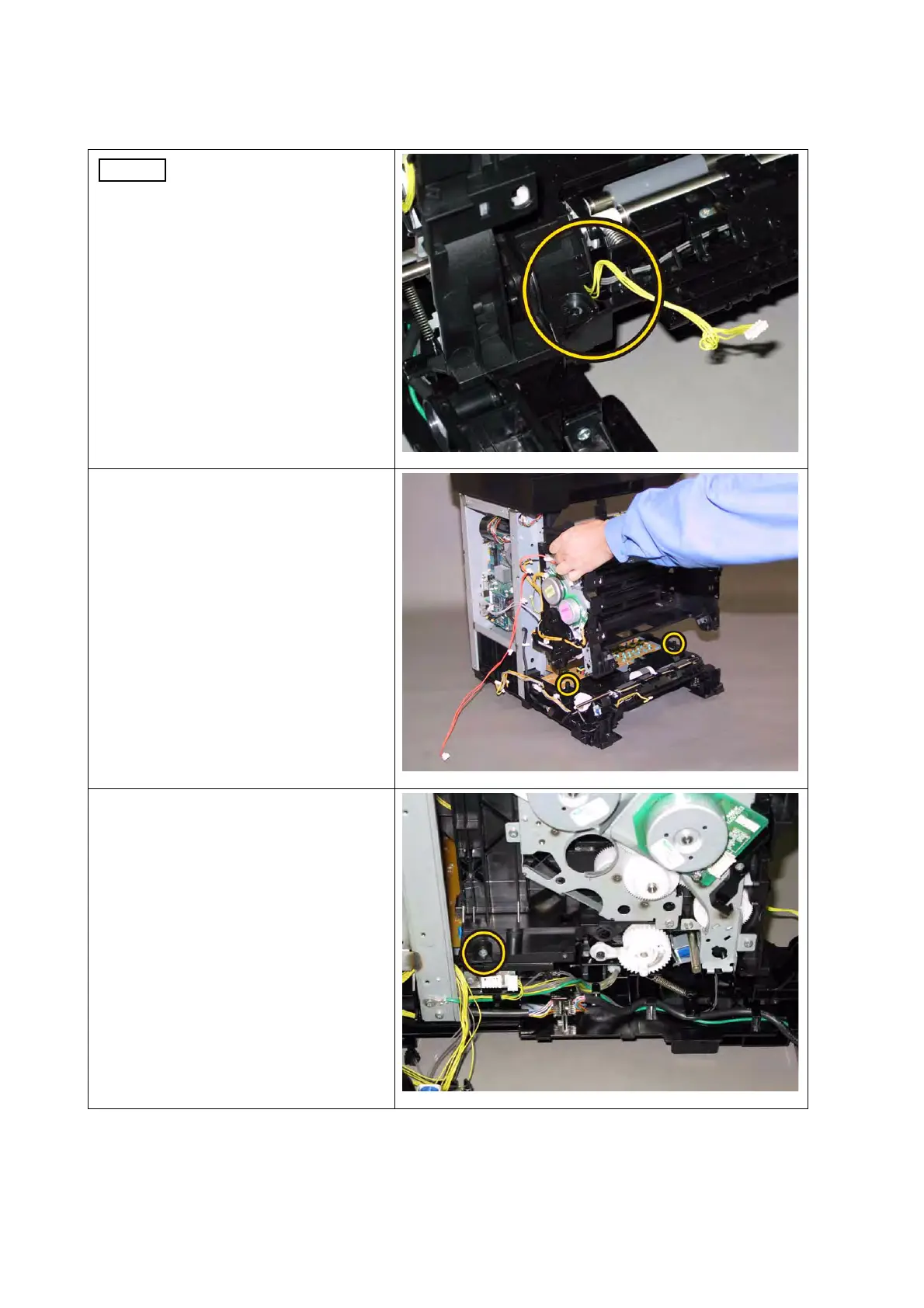

When carrying out the work
described next procedure,
route the harness of the
TRANSFER ASSY through
the groove of the UPPER
UNIT.
1) Mate the two holes of the UPPER
UNIT with the bosses of the
FEEDER ASSY MG AIO and attach
it.
2) Secure the left side of the printer
frame with the one screw (silver,
tap, 8mm).
To Next Page
