Chapter 4 Disassembly / Assembly and Adjustments

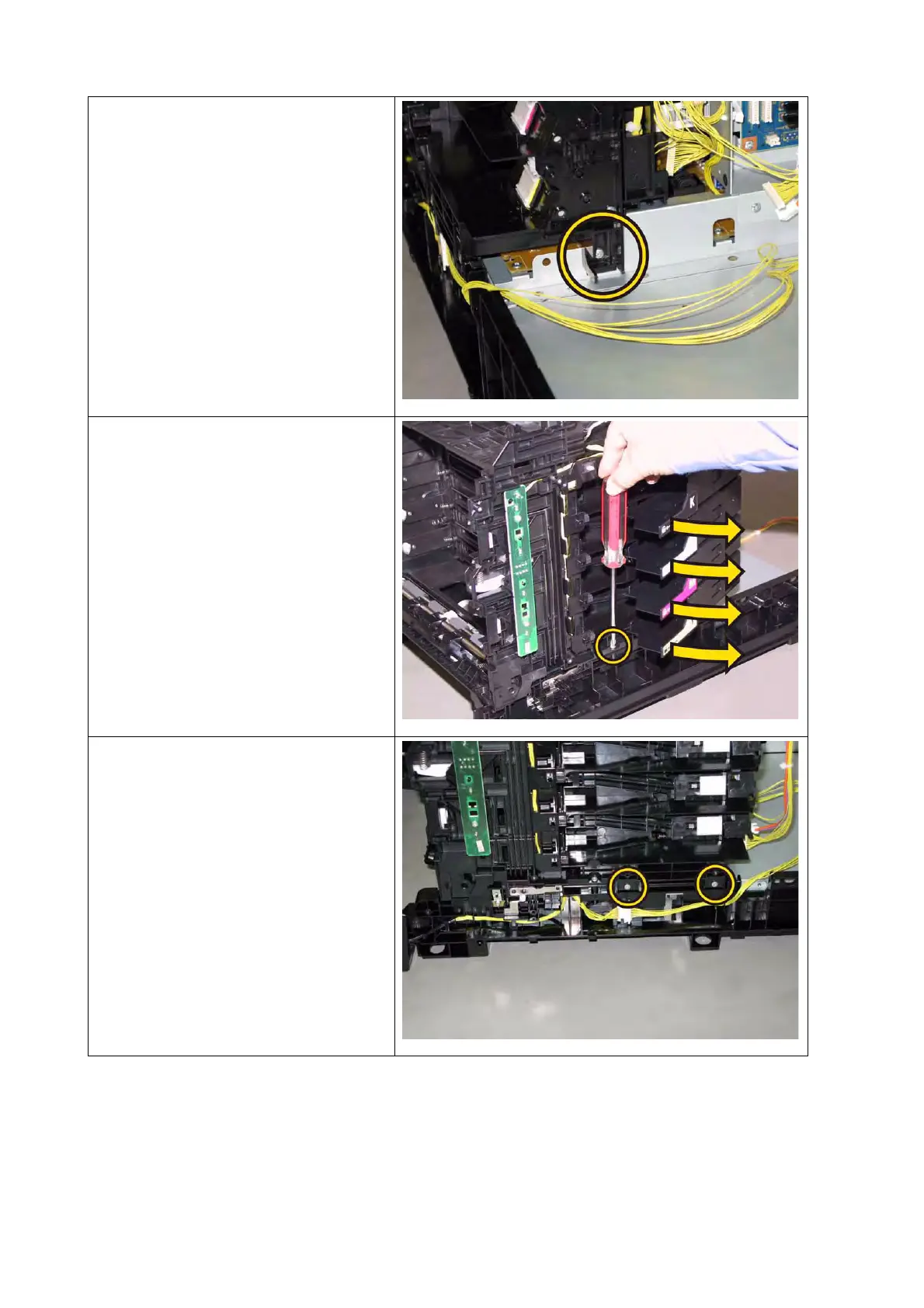

3) Secure the rear side of the DIS-
PENSER ASSY with the one screw
(silver, M4, 6mm).
4) Open the HOLDER ASSY TCRU
(K), (C), (M) and (Y), secure the
right side of the printer frame with
the one screw (silver, tap, 8mm).
5) Secure the under part of the DIS-
PENSER ASSY with the two screws
(silver, tap, 8mm).
