4 - 123
Chapter 4 Disassembly / Assembly and Adjustments

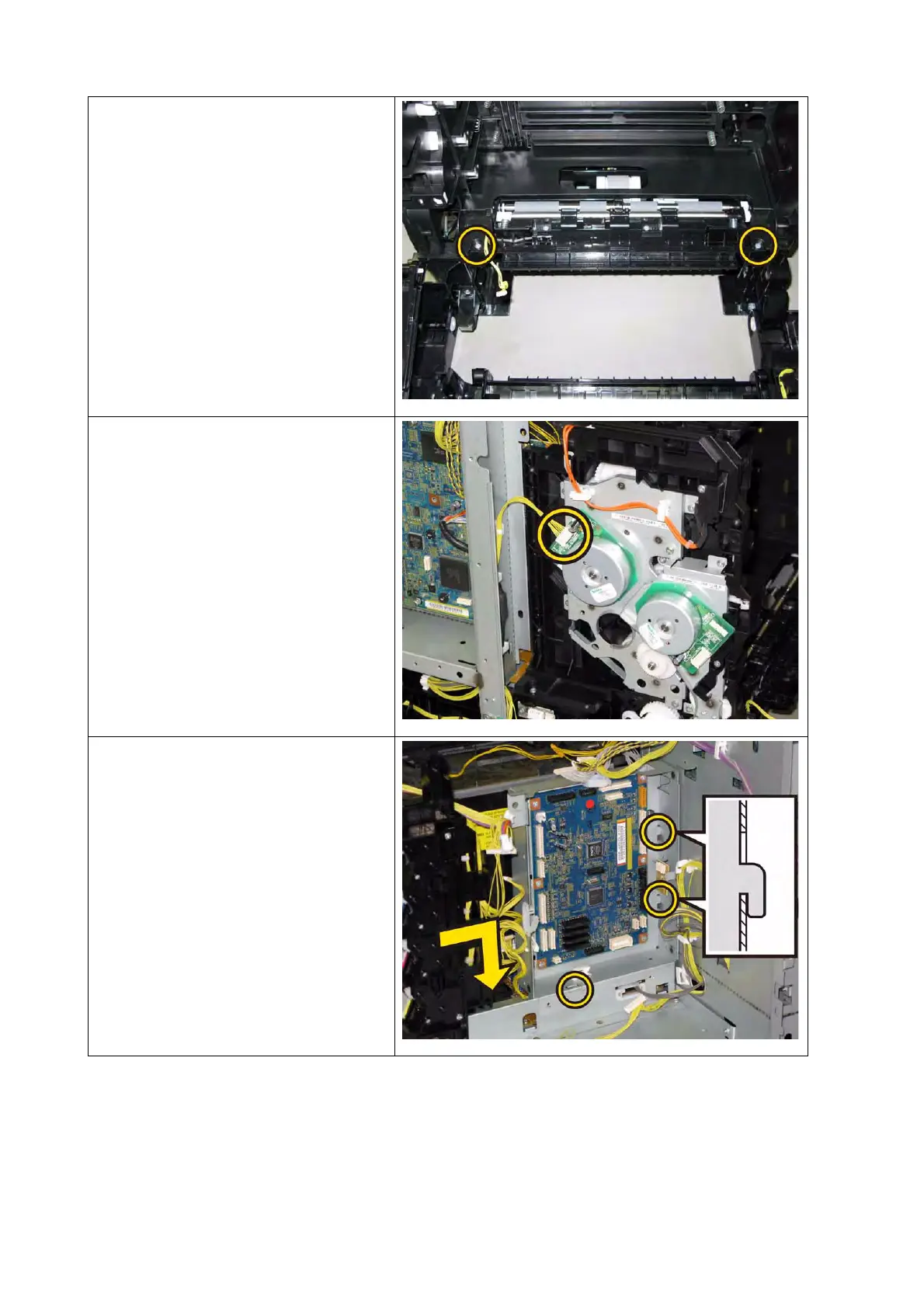

6) Secure the front side of the printer
frame with the two screws (silver,
tap, 8mm).
7) Engage the connecter (P/J221) of
the DRIVE ASSY SUB.
8) Mate the three tabs of the CHASSIS
MCU with the holes of the printer,
attach the CHASSIS MCU to the
printer together with the PWBA
MCU.
