Fuji Xerox DocuPrint CM305 df Service Manual

4 - 124
Chapter 4 Disassembly / Assembly and Adjustments

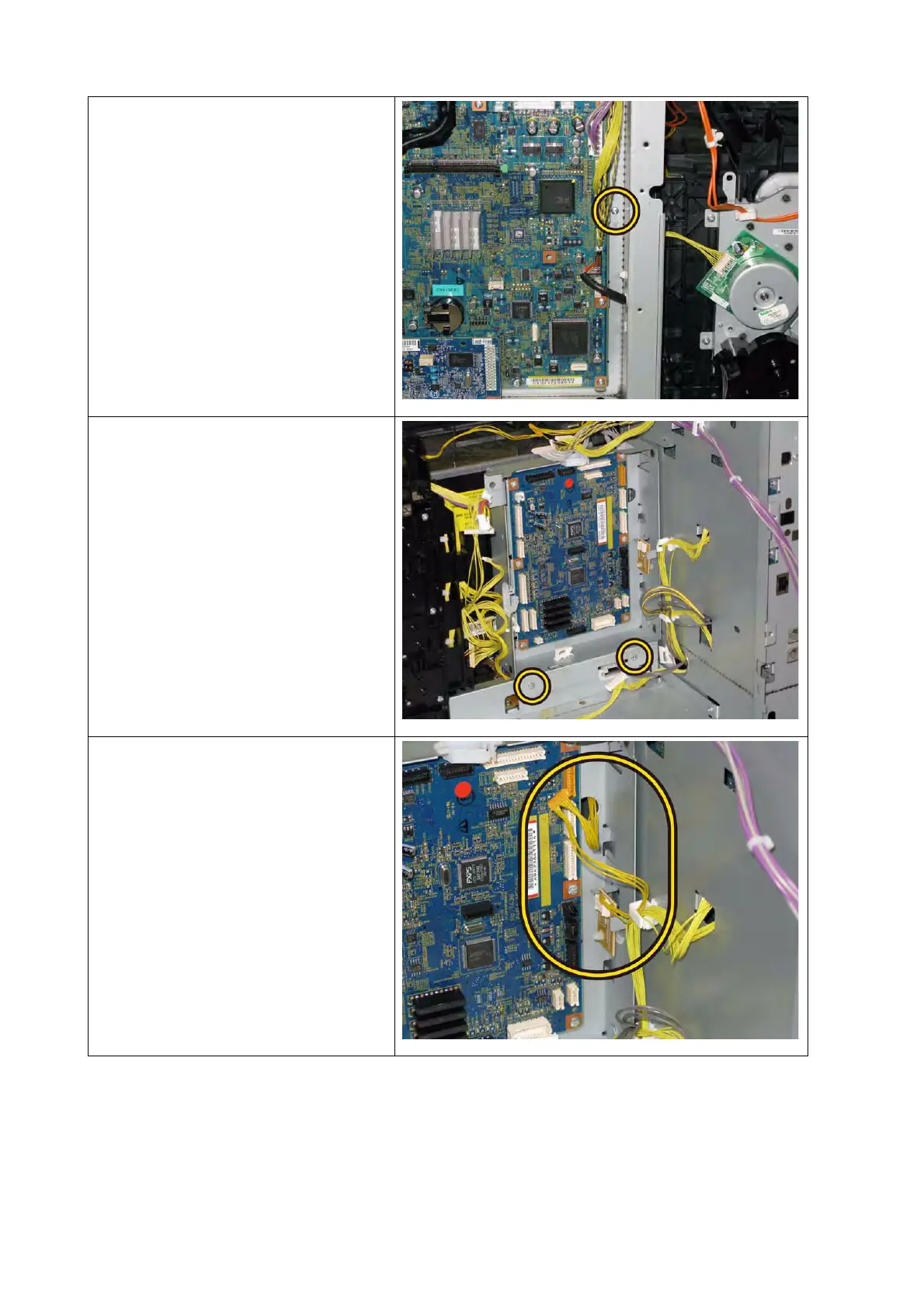

9) Secure the side part of the CHAS-
SIS MCU with the one screw (silver,
6mm).
10) Secure the under part of the CHAS-
SIS MCU with the two screws (sil-
ver, 6mm).
11) Route the HARN ASSY PHD XPRO
through the hole of the CHASSIS
MCU, engage the connector (P/J144)
of the PWBA EEPROM. Secure the
HARN ASSY PHD XPRO using the
clamp.
