Fuji Xerox DocuPrint CM305 df Service Manual

4 - 151
Chapter 4 Disassembly / Assembly and Adjustments

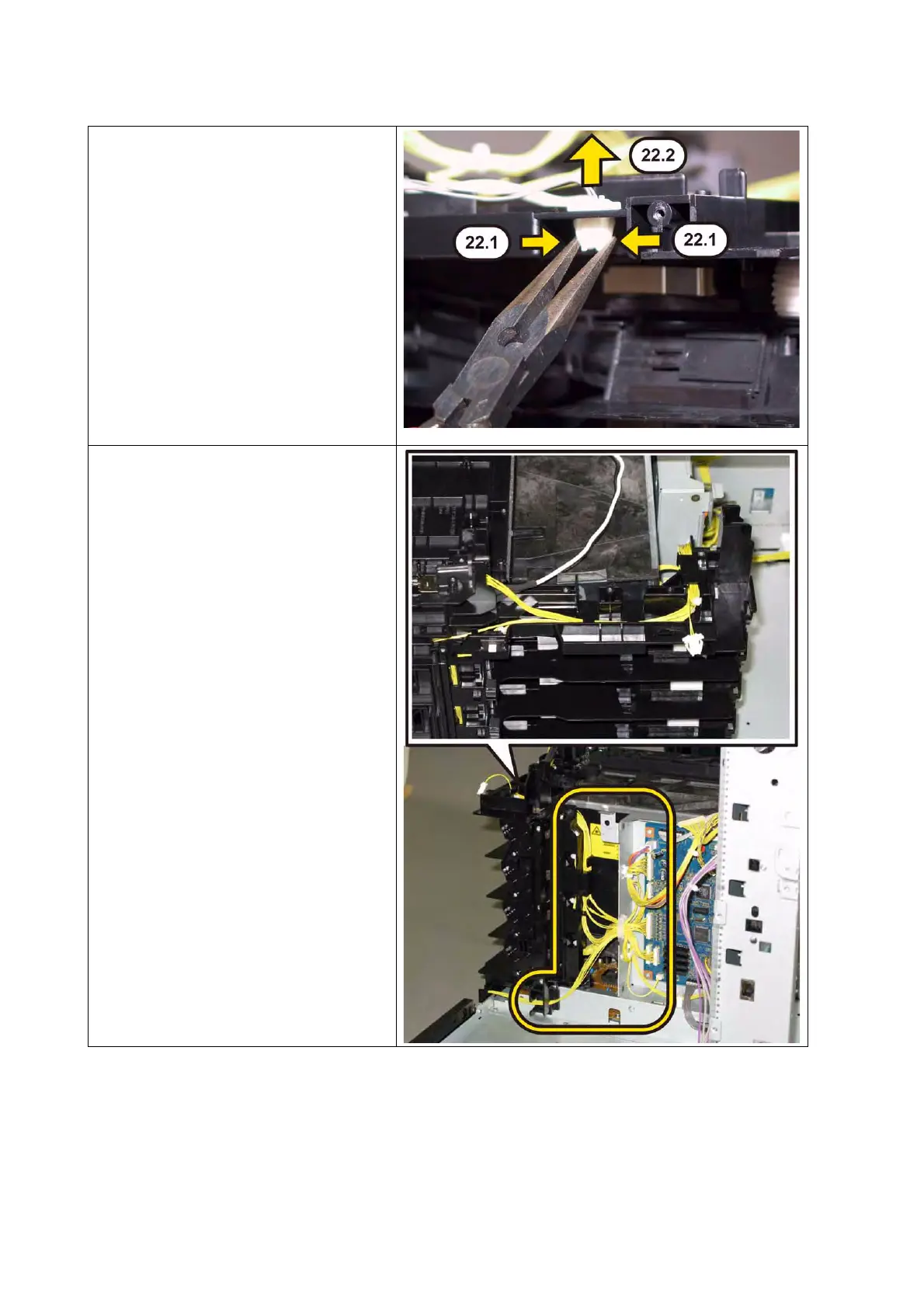

22) Release the hooks of the connector
(P5041) of the HARNESS ASSY
LVPS MAIN MG AIO (PL9.1.3),
using a pliers, and then remove it
from the DISPENSER ASSY
(PL5.1.1).
23) Disengage the seven connectors (P/
J14, 15, 17, 18, 19, 29 and 31) on the
PWBA MCU (PL8.3.6), release the
HARNESS ASSY FUSING UNIT
MG AIO (PL6.1.2) and HARNESS
ASSY LVPS MAIN MG AIO from
the hooks of the DISPENSER ASSY.
