Chapter 4 Disassembly / Assembly and Adjustments

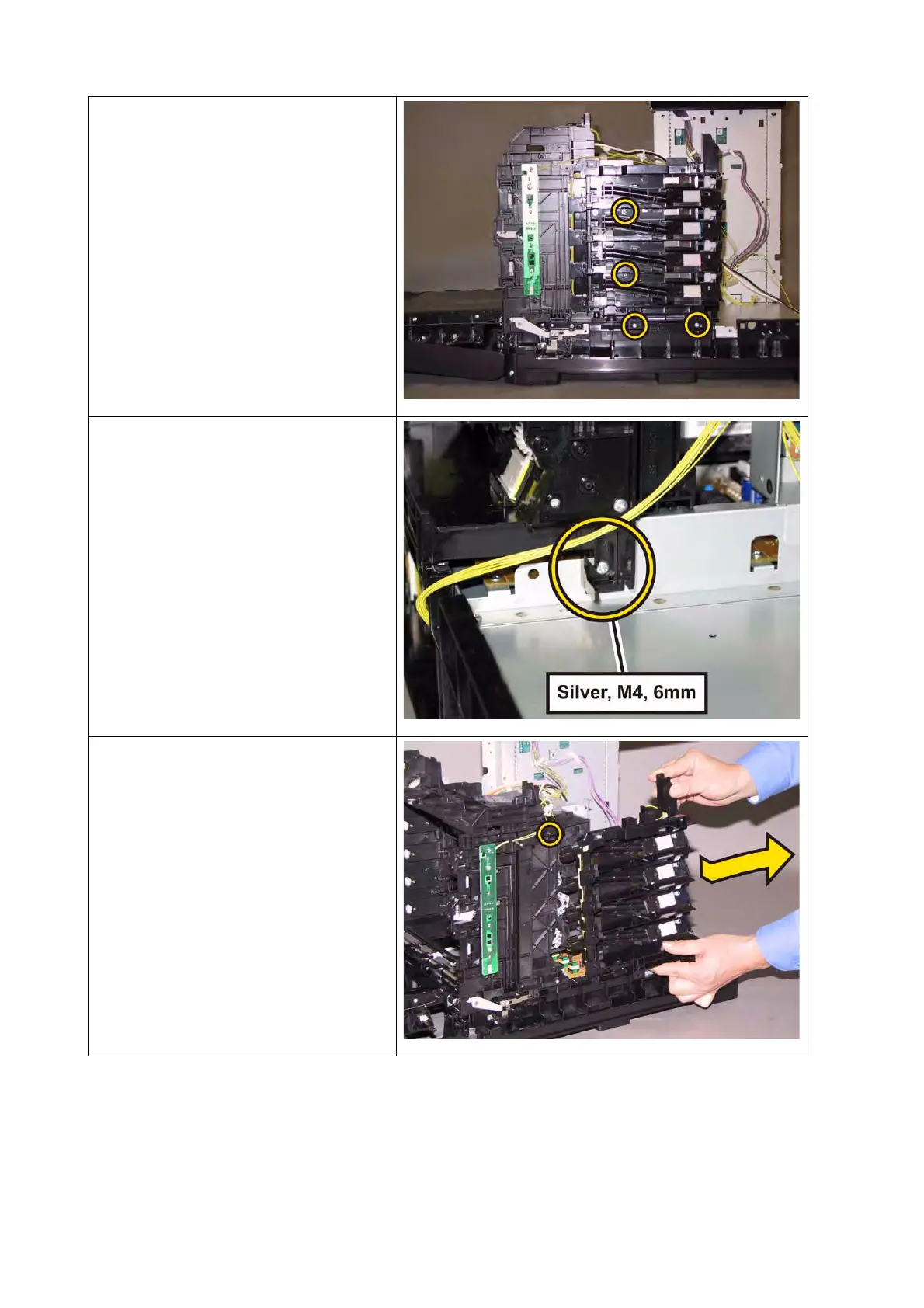

24) Remove the four screws (silver, tap,
8mm) that fix the DISPENSER
ASSY to the printer.
25) Remove the one screw (silver, M4,
6mm) that fixes the rear side of the
DISPENSER ASSY to the printer.
26) Release the hole of the DISPENSER
ASSY from the boss of the printer,
move the DISPENSER ASSY to
backward. Remove the DISPENSER
ASSY from the printer.
