Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]

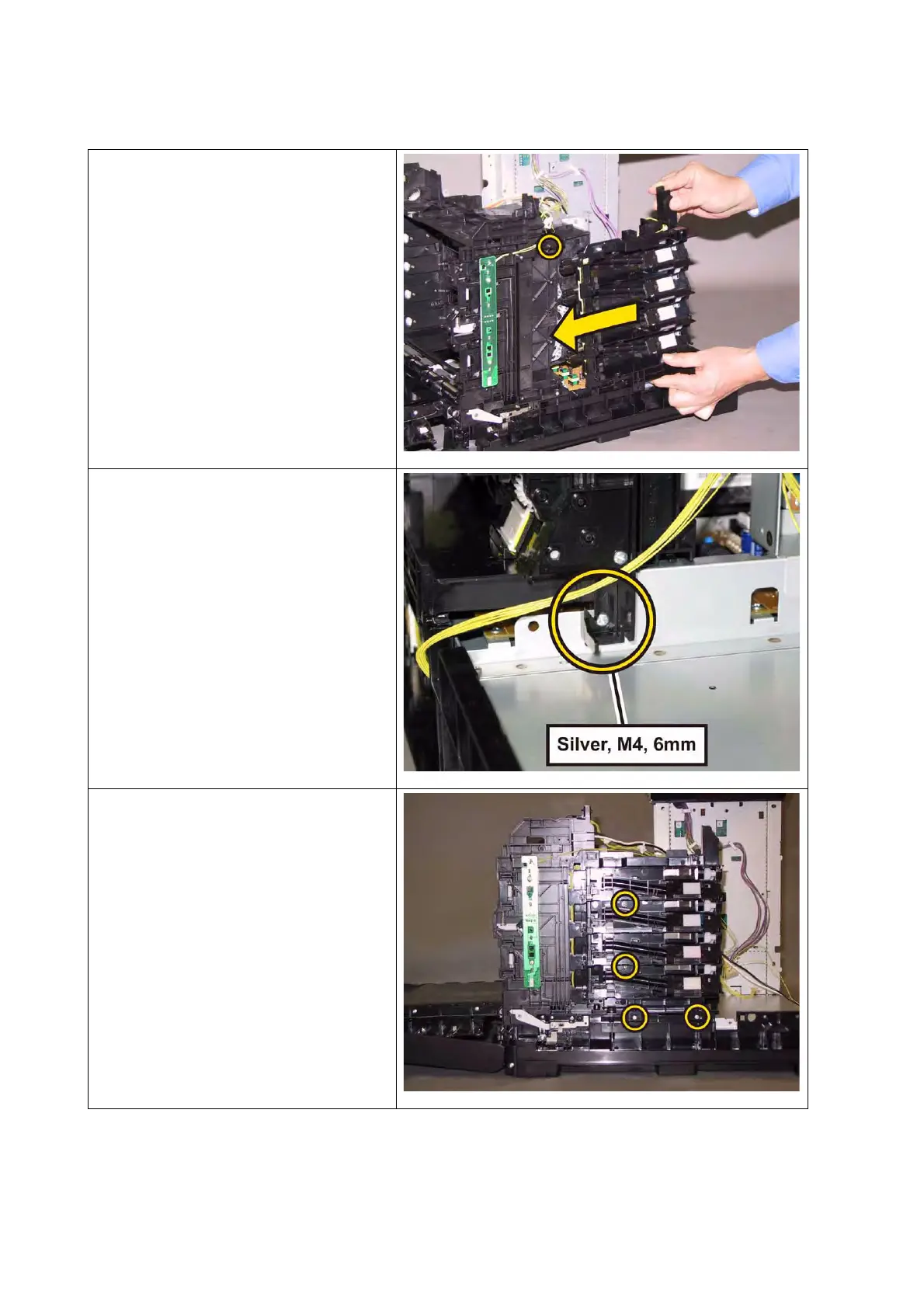

1) Insert the AUGER part of the DIS-
PENSER ASSY into the hole of the
printer, mate the hole of the DIS-
PENSER ASSY with the boss of the
printer, and then attach the DIS-
PENSER ASSY.
2) Secure the rear side of DISPENSER
ASSY to the printer with the one
screw (silver, M4, 6mm).
3) Secure the DISPENSER ASSY to
the printer with the four screws (sil-
ver, tap, 8mm).
