4 - 155
Chapter 4 Disassembly / Assembly and Adjustments

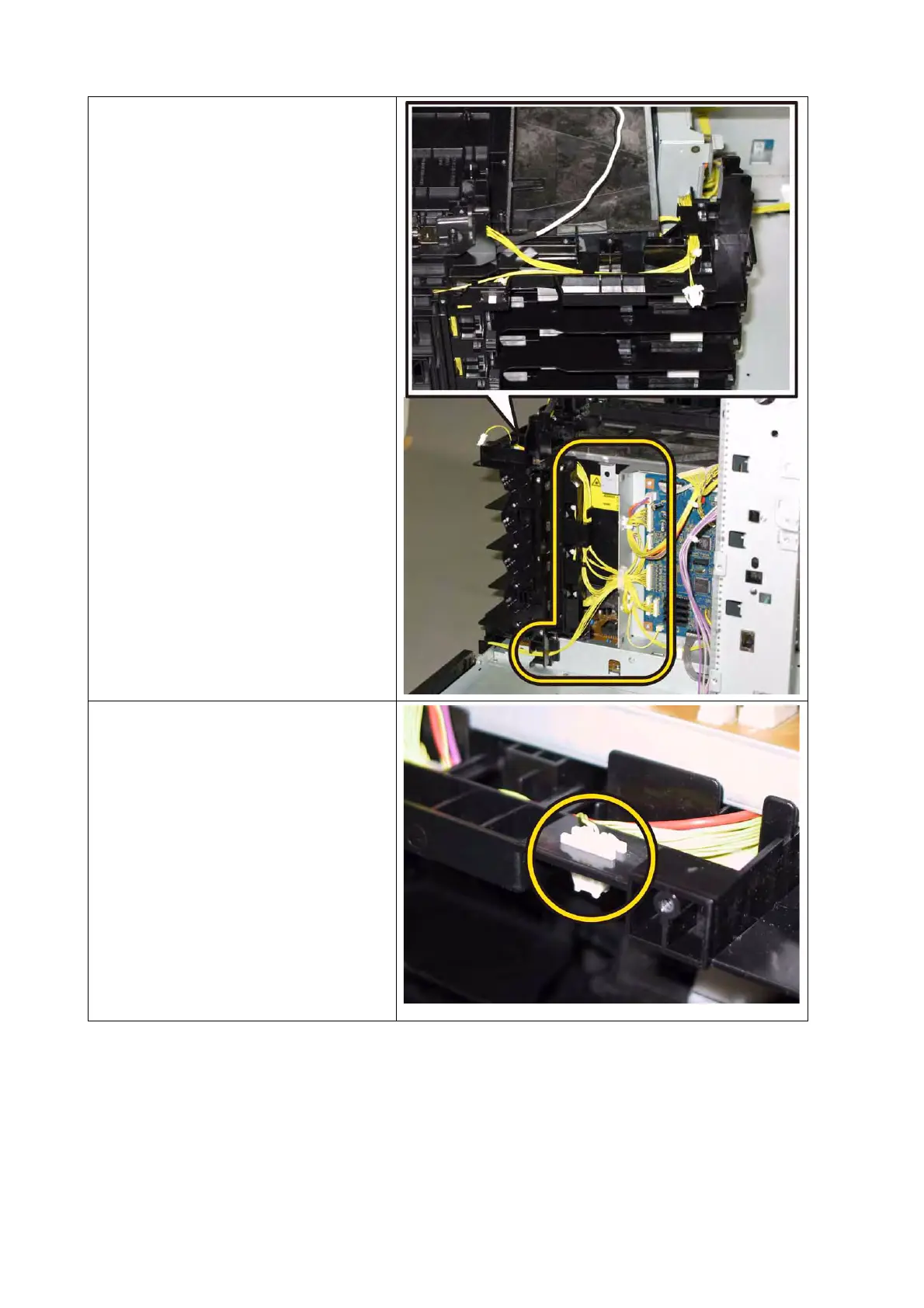

4) Route the HARNESS ASSY FUS-
ING UNIT MG AIO and HARNESS
ASSY LVPS MAIN MG AIO through
the hooks of the DISPENSER ASSY,
engage the seven connectors (P/J14,
15, 17, 18, 19, 29 and 31) with the
PWBA MCU.
5) Attach the connector (P5041) of the
HARNESS ASSY LVPS MAIN MG
AIO to the DISPENSER ASSY.
