Fuji Xerox DocuPrint CM305 df Service Manual

4 - 166
Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]
NOTE
Described below is the replacement procedure common among the four
HOLDER ASSY TCRU.

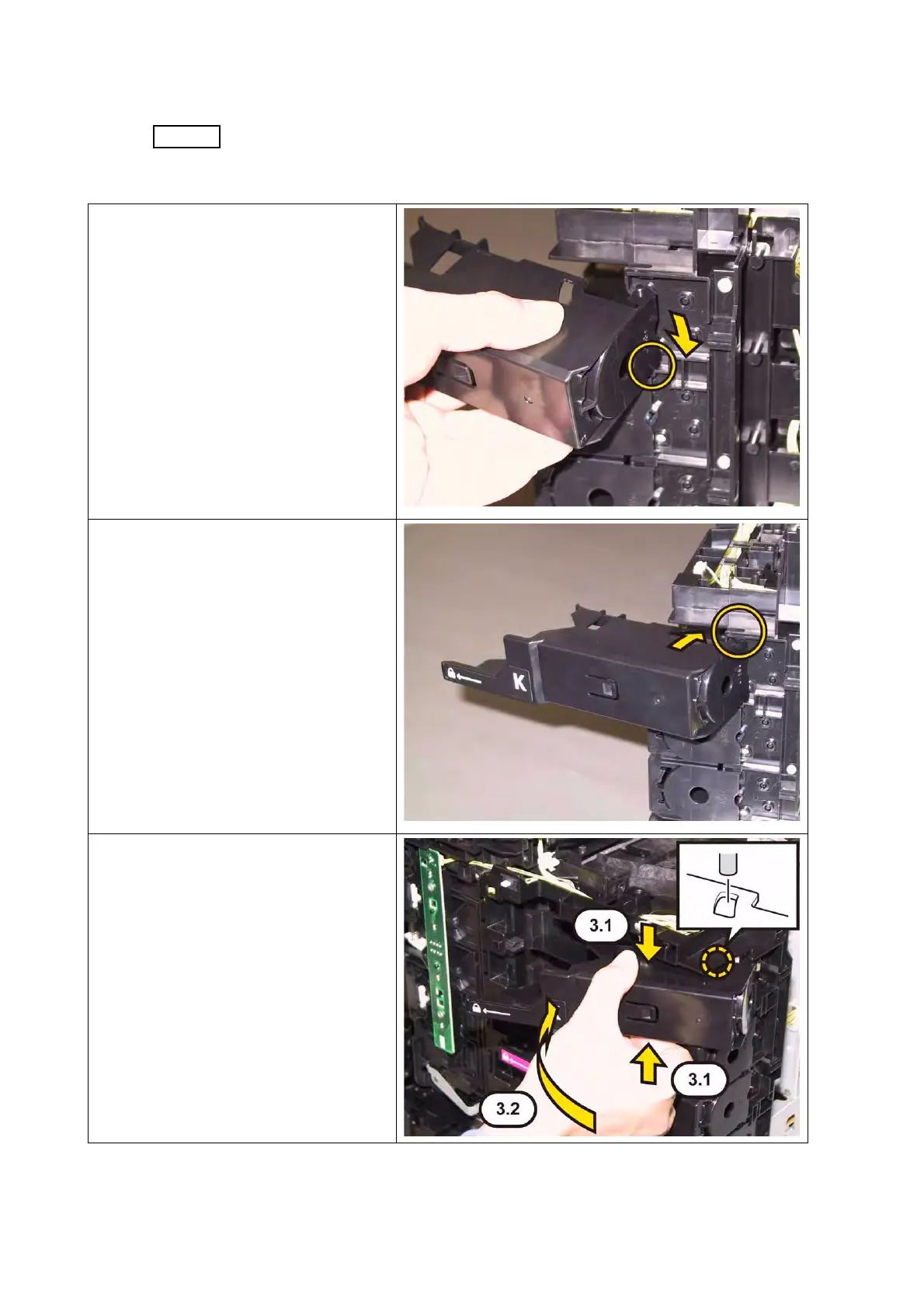

1) Mate the lower boss of the HOLDER
ASSY TCRU with the hole of the
FRAME DISP.
2) Bend the HOLDER ASSY TCRU,
mate the upper boss of the HOLDER
ASSY TCRU with the hole of the
FRAME DISP.
3) Press the central part of the
HOLDER ASSY TCRU, mate the
hole of the HOLDER ASSY TCRU
with the boss of the FRAME DISP.
