4 - 183
Chapter 4 Disassembly / Assembly and Adjustments
11) Tilt the TRANSFER ASSY slowly.
12) Remove the STOPPER PIVOT (PL6.1.3), PIVOT TRANS L (PL6.1.4), GEAR T4 (PL6.1.5), and
SHAFT ASSY PIVOT (PL6.1.6). (REP6.2)

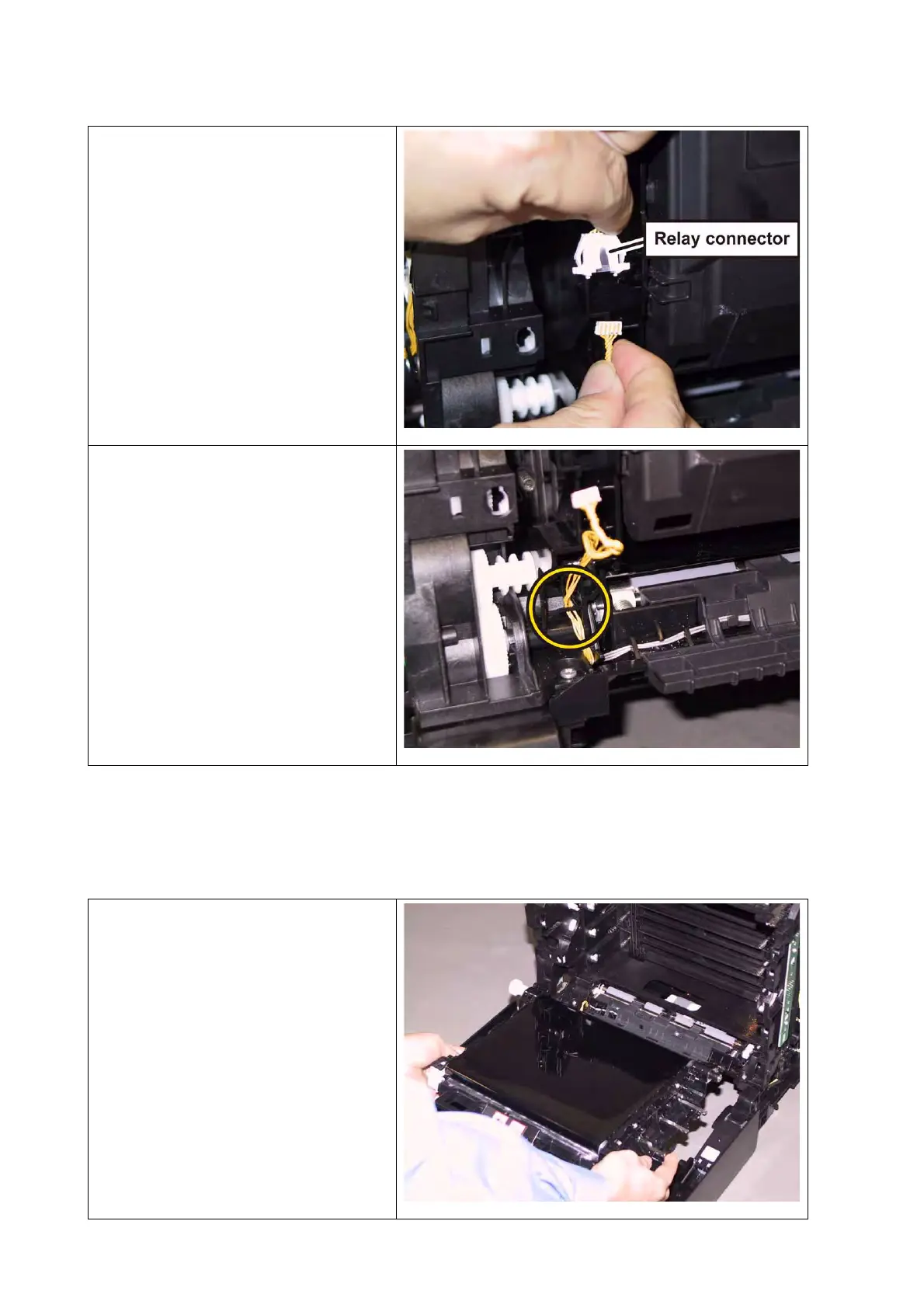

9) Release the harness from the pegs of
the TRANSFER ASSY, disengage
the connector (P/J281) of the
TRANSFER ASSY.
10) Release the harness coming from
printer from hook of the TRANS-
FER ASSY.
13) Remove the TRANSFER ASSY from
the printer.
To Next Page
