Fuji Xerox DocuPrint CM305 df Service Manual

4 - 230
Chapter 4 Disassembly / Assembly and Adjustments

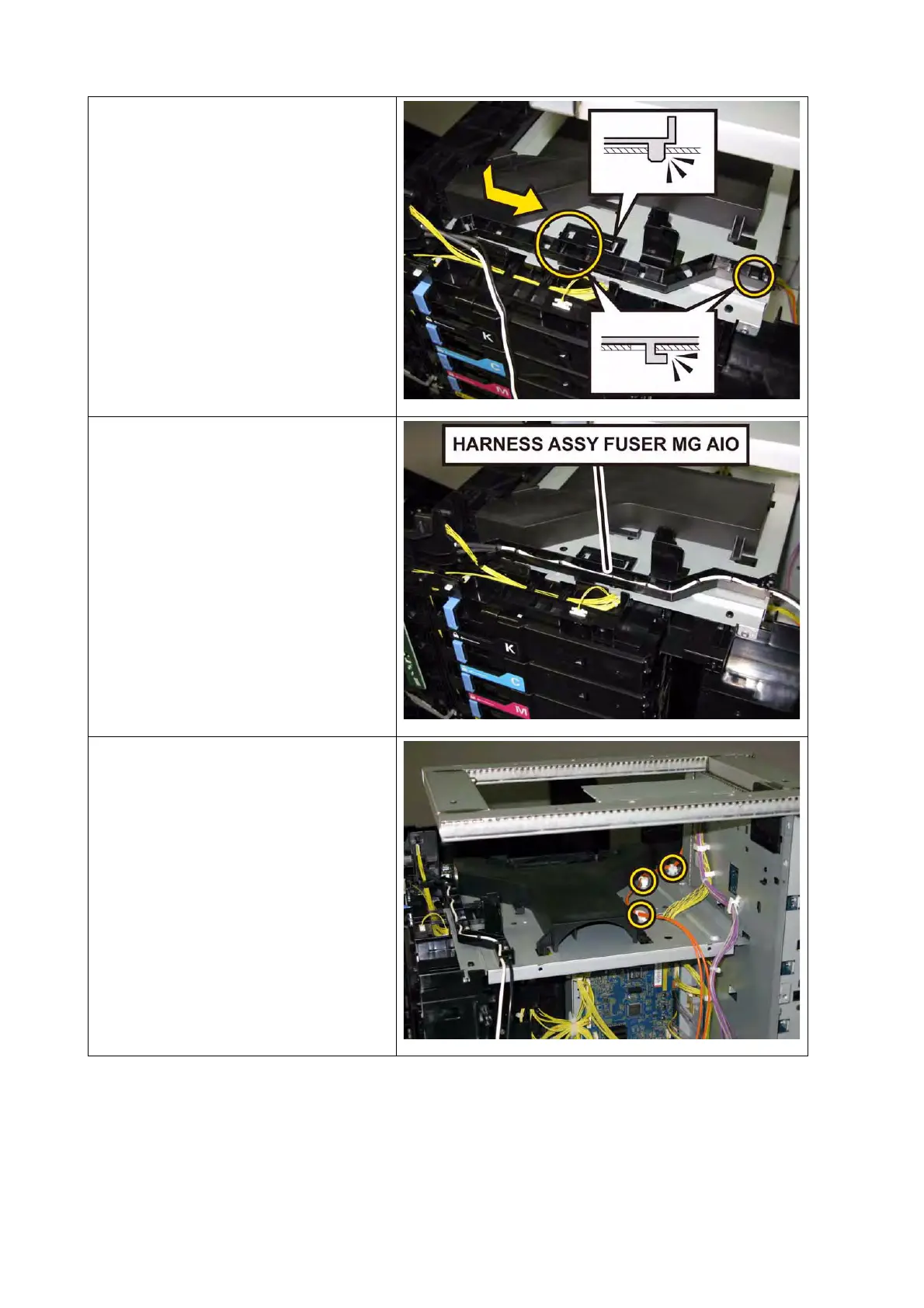

7) Mate the hooks of the GUIDE HAR-
NESS FSR AIO with the holes of the
PLATE ASSY TOP, move the
GUIDE HARNESS FSR AIO to
secure it.
8) Route the harness of the HARNESS
ASSY FUSING UNIT MG AIO
along the GUIDE HARNESS FSR
AIO.
9) Replace the three clamps that
secure the harness of the HARN
ASSY INTERLOCK AIO to the
PLATE ASSY TOP.
