4 - 252
Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]
Since three types of screws are used for securing the CHASSIS LVPS, ensure
that the right screws are used at their right securing positions.
The securing positions for tap screws are marked with [T].
The securing positions for metal screws are marked with [M].

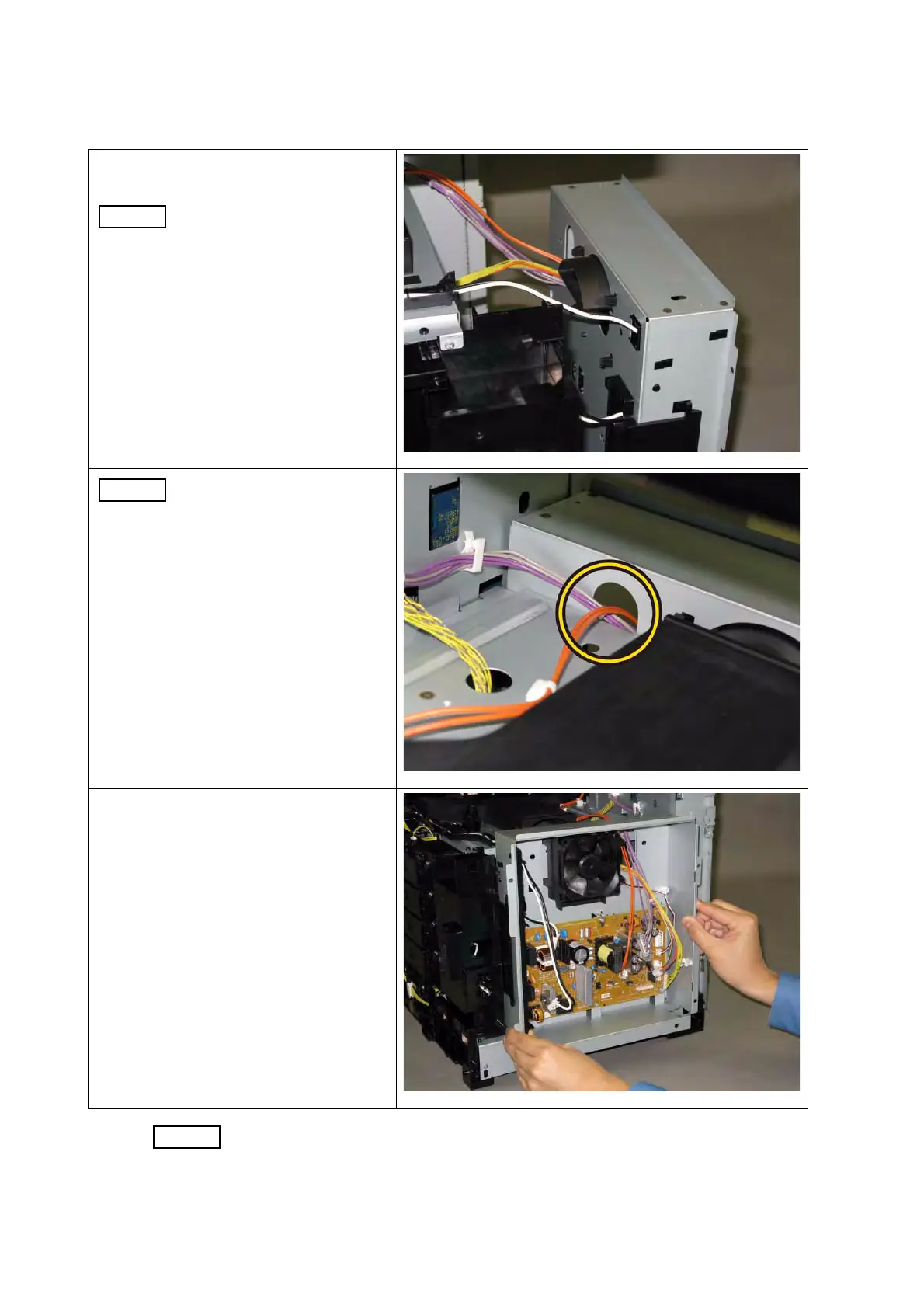

1) Route the harnesses into the hole of
the CHASSIS LVPS.
Take care not to route the
harness through the wrong
hole.
When carrying out the work
described next procedure,
take care not to damage the
harness by pinching it
between the CHASSIS
LVPS and the printer.
2) Attach the CHASSIS LVPS to the
printer together with the PWBA
LVPS and the DUCT FAN ASSY.
To Next Page
