4 - 280
Chapter 4 Disassembly / Assembly and Adjustments

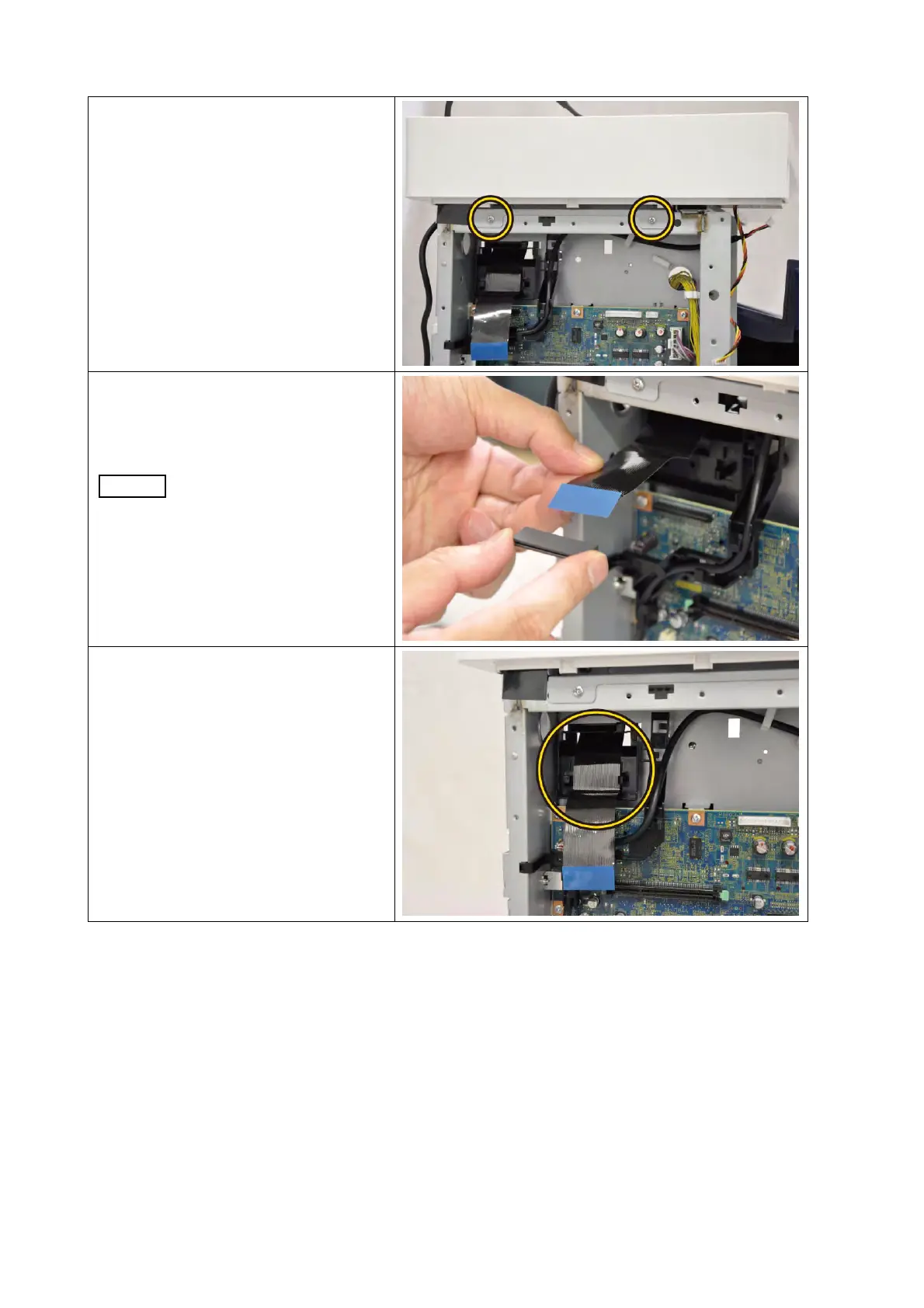

3) Secure the IIT ASSY SUB to the
printer with the two screws (silver,
6mm).
4) Route the flat cable through the
HOLDER FFC, attach the CORE
FERR FFC to the flat cable of the
IIT ASSY SUB.
When carrying out this
procedure, ensure that the
flat cable is pulled out
without a slack between
the IIT ASST SUB and the
frame.
5) With the flat cable stretched tight,
bend it lightly so that it is aligned to
the underside of the HOLDER FFC.
To Next Page
