Fuji Xerox DocuPrint CM305 df Service Manual

4 - 291
Chapter 4 Disassembly / Assembly and Adjustments

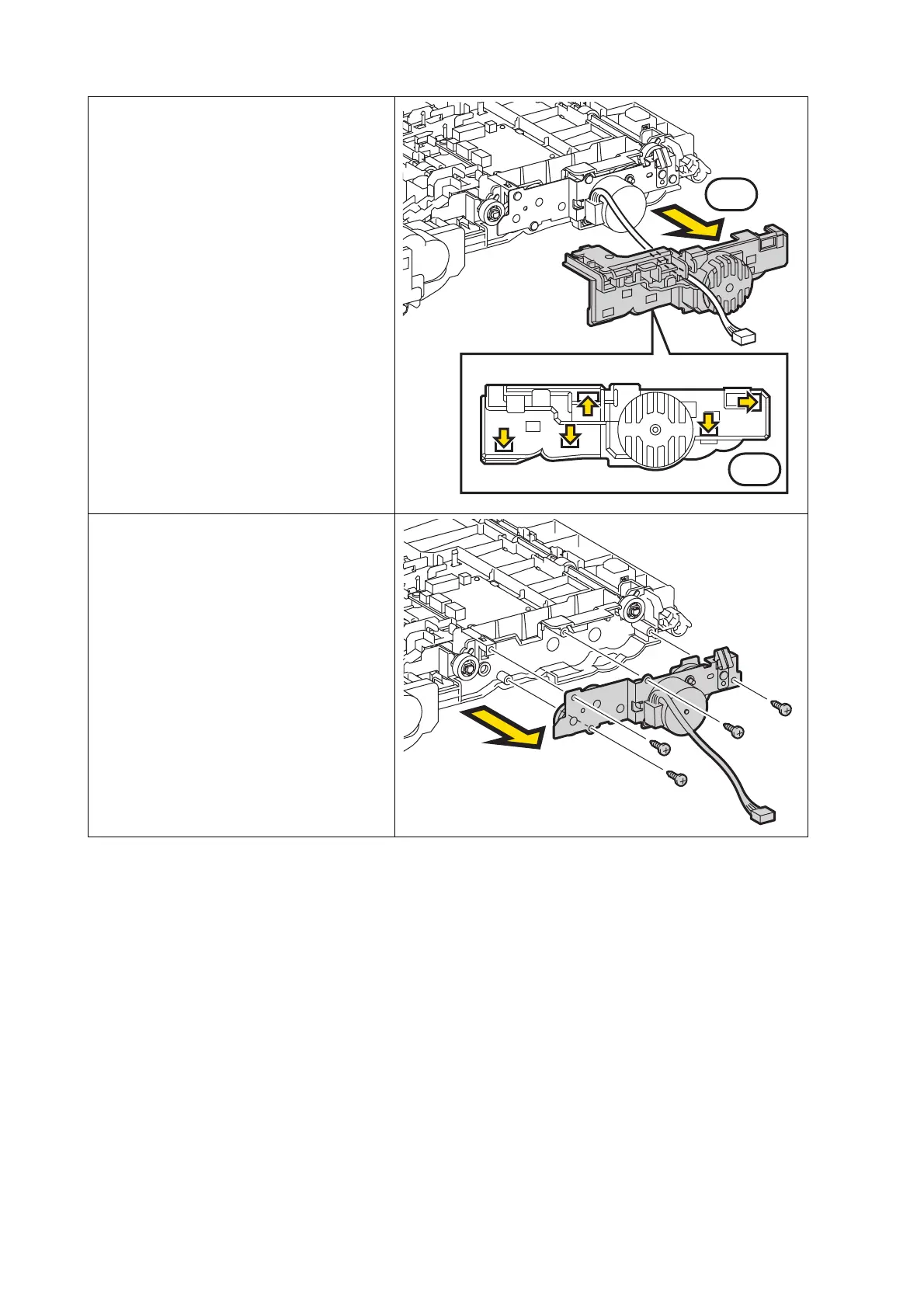

5) Release the five hooks of the
COVER DRIVE DUP. Draw out the
connector of the DRIVE ASSY DUP
from the hole of the COVER DRIVE
DUP, and then remove the COVER
DRIVE DUP from the FEEDER
ASSY DUP AIO STD.
6) Remove the four screws (silver, tap,
8mm) that fix the DRIVE ASSY
DUP to the FEEDER ASSY DUP
AIO STD, remove the DRIVE ASSY
DUP.
