Fuji Xerox DocuPrint CM305 df Service Manual

4 - 292
Chapter 4 Disassembly / Assembly and Adjustments

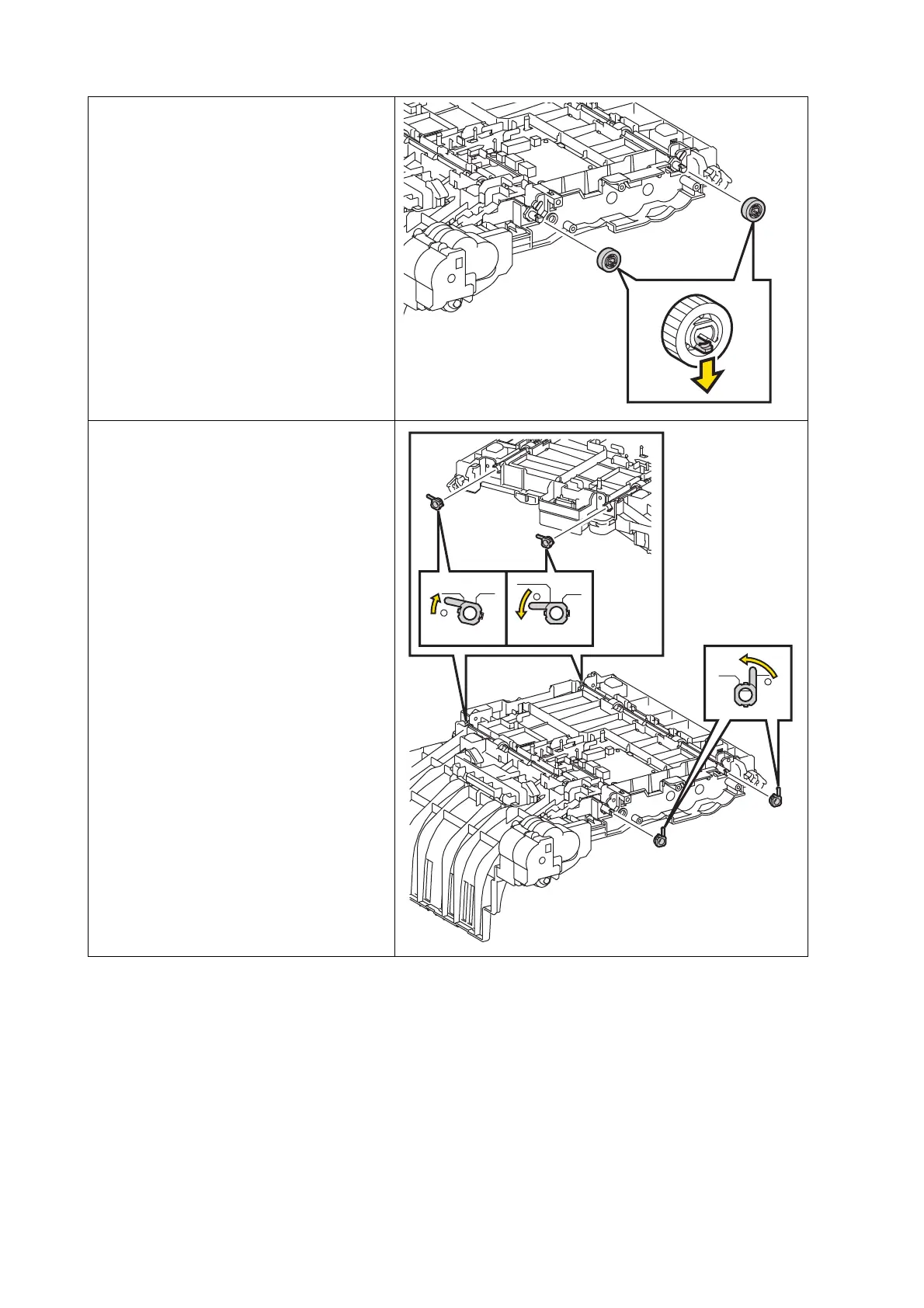

7) Release the hook of the GEAR
ROLL DUP (PL11.2.6), remove the
GEAR ROLL DUP from the
ROLLER ASSY DUP (PL11.2.9).
8) Remove the BEARING DUP
(PL11.2.7) that fixes the right and
left sides of the ROLLER ASSY
DUP by rotating in the direction
shown by the arrow.
