Chapter 4 Disassembly / Assembly and Adjustments

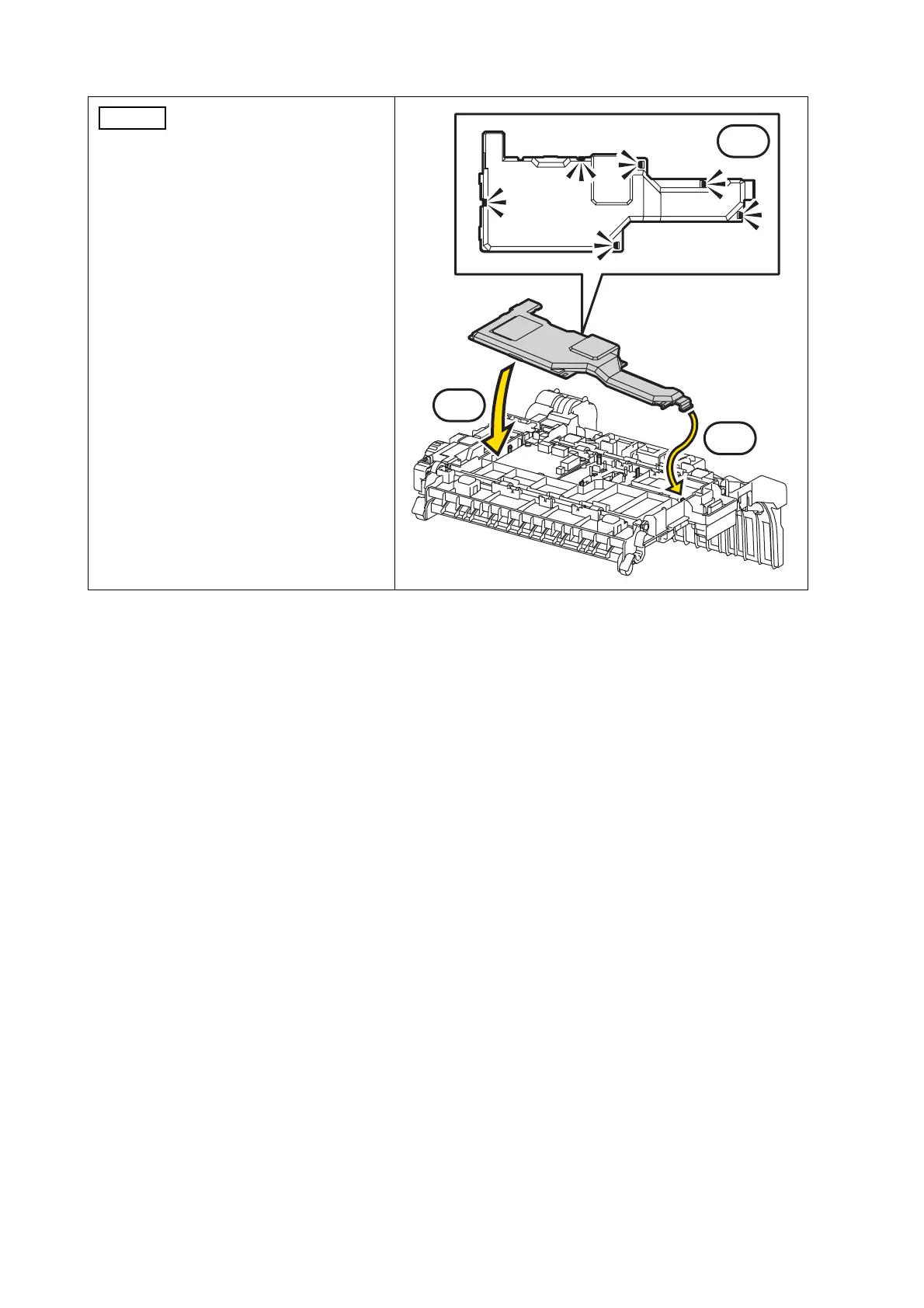

NOTE
When carrying out the
steps described below,
insert the right edge of the
COVER PWBA DUP into the
clearance of the CHUTE
DUP FRAME.
7) Attach the COVER PWBA DUP to
the FEEDER ASSY DUP AIO STD,
secure the COVER PWBA DUP
with the six hooks.
7.3
7.2
7.1
