Fuji Xerox DocuPrint CM305 df Service Manual

4 - 296
Chapter 4 Disassembly / Assembly and Adjustments

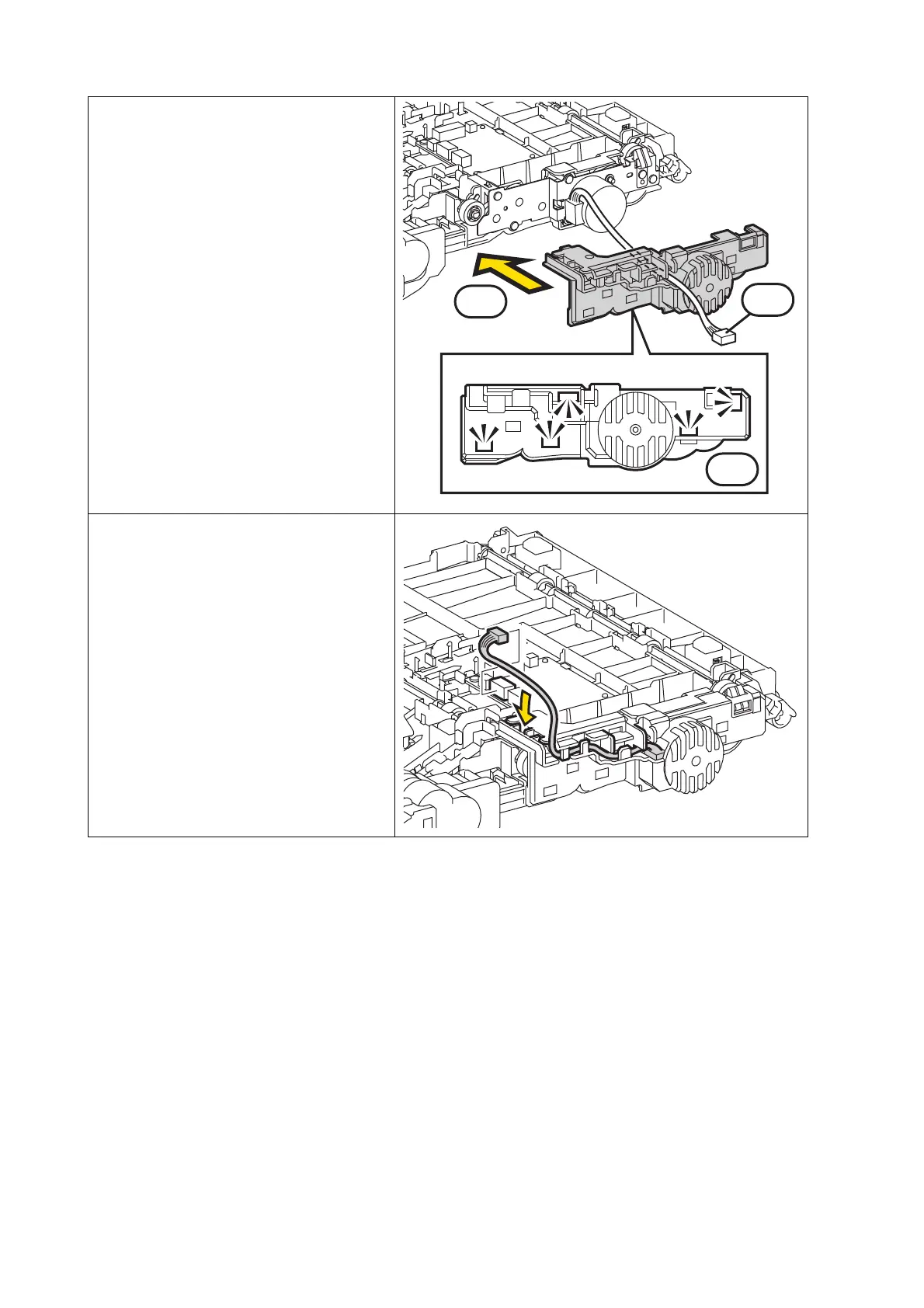

5) Draw the connector of the DRIVE
ASSY DUP through the hole of the
COVER DRIVE DUP. Then fix the
COVER DRIVE DUP to the
FEEDER ASSY DUP AIO STD
using the five hooks.
6) Route the harness of the DRIVE
ASSY DUP along the hooks of the
COVER DRIVE DUP, engage the
connector (P/J603) of the DRIVE
ASSY DUP to the PWBA DUP.
5.2
5.3
5.1
