Fuji Xerox DocuPrint CM305 df Service Manual

4 - 295

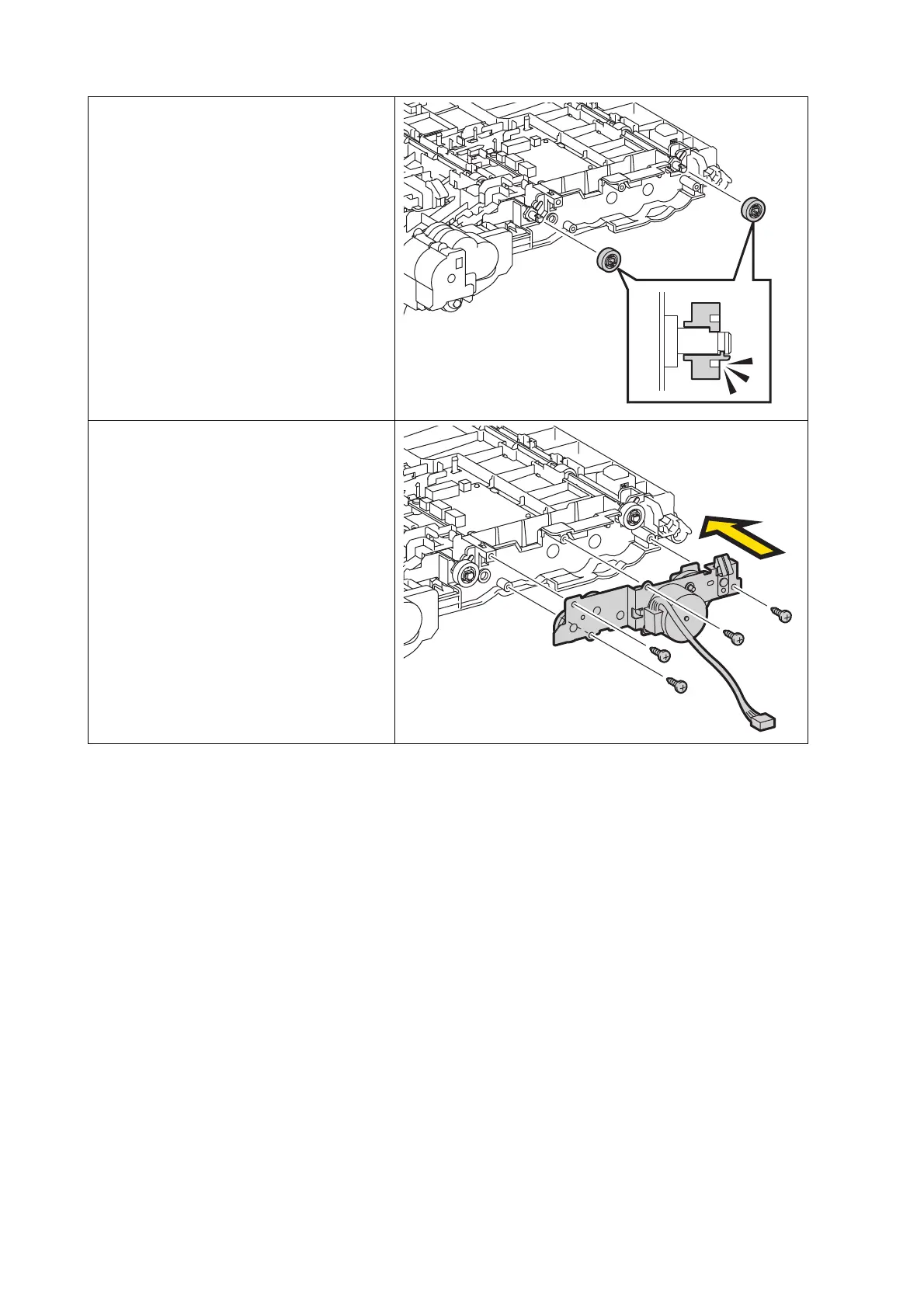

Chapter 4 Disassembly / Assembly and Adjustments
3) Attach the GEAR ROLL DUP to the
ROLLER ASSY DUP, mate the
hook of the GEAR ROLL DUP with
the groove of the FEEDER ASSY
DUP AIO STD.
4) Attach the DRIVE ASSY DUP to
the FEEDER ASSY DUP AIO STD,
secure the DRIVE ASSY DUP with
the four screws (silver, tap, 8mm).
