Operation Manual – Login
H3C S3100 Series Ethernet Switches Chapter 2 Logging in through the Console Port
2-2
2) If you use a PC to connect to the Console port, launch a terminal emulation utility
(such as Terminal in Windows 3.X or HyperTerminal in Windows 9X/Windows
2000/Windows XP. The following assumes that you are running Windows XP) and
perform the configuration shown in
Figure 2-2 through Figure 2-4 for the
connection to be created. Normally, both sides (that is, the serial port of the PC
and the Console port of the switch) are configured as those listed in
Table 2-1.

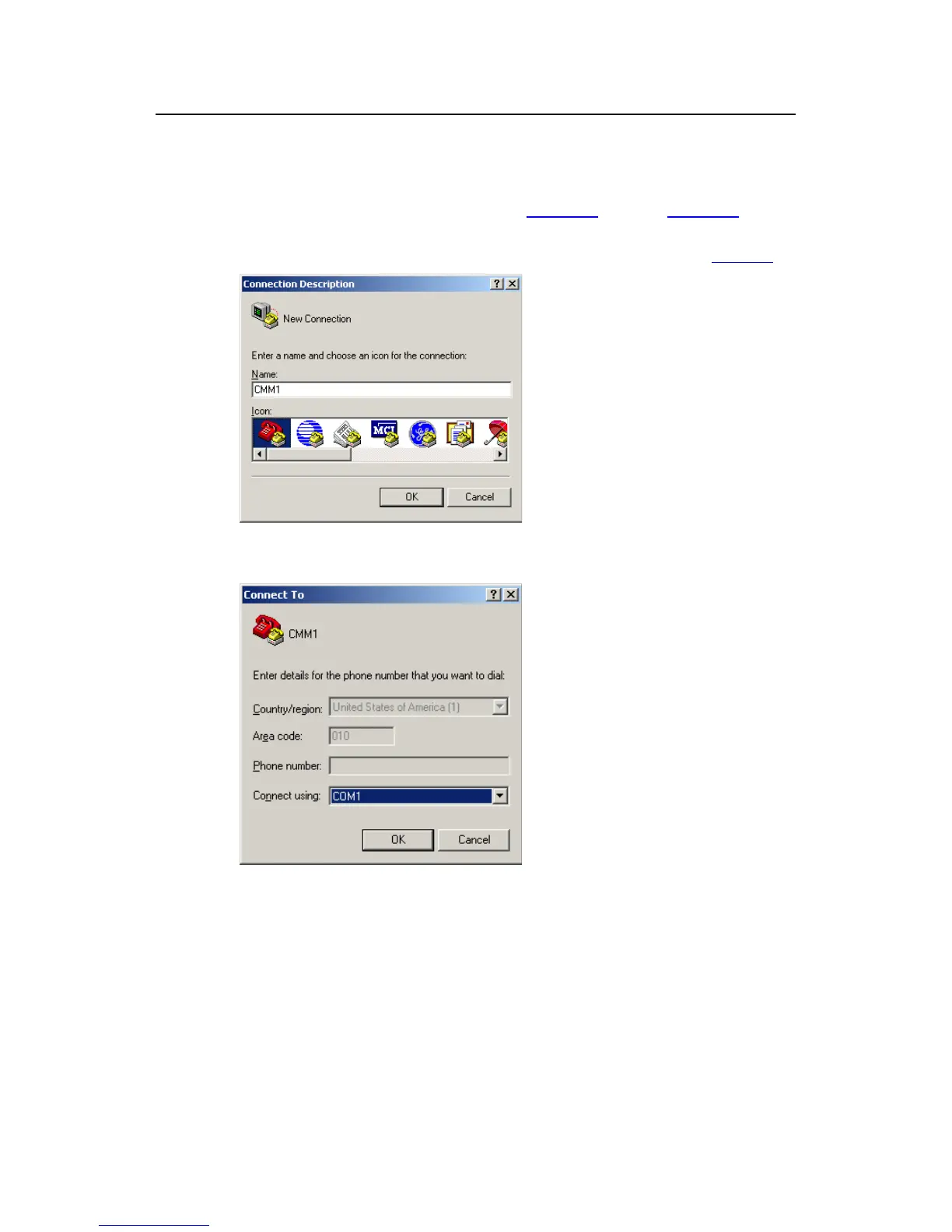

Figure 2-2 Create a connection
Figure 2-3 Specify the port used to establish the connection
