Operation Manual – SNMP-RMON
H3C S3100 Series Ethernet Switches Chapter 1 SNMP Configuration
1-10
II. Network diagram

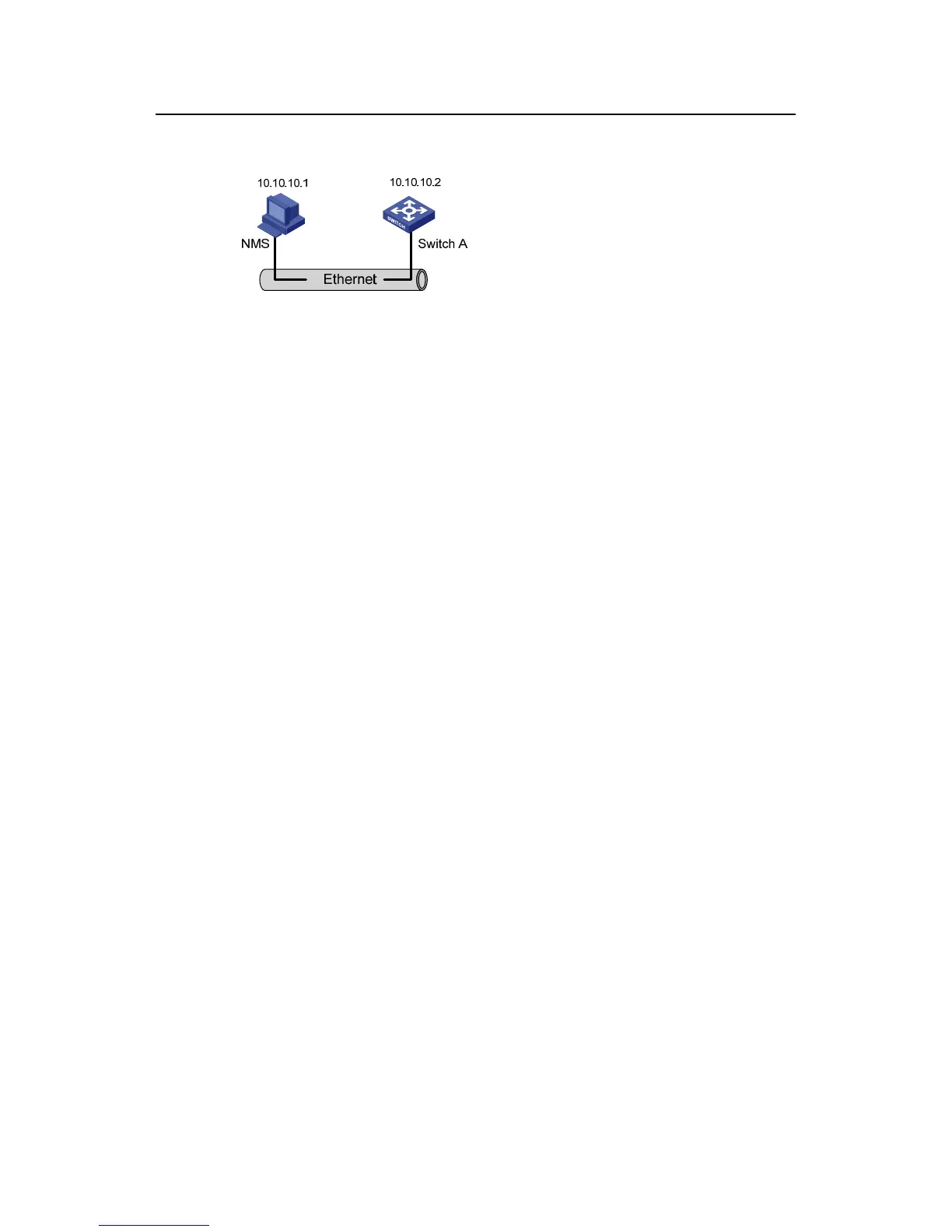

Figure 1-2 Network diagram for SNMP configuration
III. Network procedure
# Enable SNMP agent, and set the SNMPv1 and SNMPv2c community names.
<Sysname> system-view
[Sysname] snmp-agent
[Sysname] snmp-agent sys-info version all
[Sysname] snmp-agent community read public
[Sysname] snmp-agent community write private
# Set the access right of the NMS to the MIB of the SNMP agent.
[Sysname] snmp-agent mib-view include internet 1.3.6.1
# For SNMPv3, set:
z SNMPv3 group and user
z security to the level of needing authentication and encryption
z authentication protocol to HMAC-MD5
z authentication password to passmd5
z encryption protocol to DES
z encryption password to cfb128cfb128
[Sysname] snmp-agent group v3 managev3group privacy write-view internet
[Sysname] snmp-agent usm-user v3 managev3user managev3group
authentication-mode md5 passmd5 privacy-mode des56 cfb128cfb128
# Set the VLAN-interface 2 as the interface used by NMS. Add port Ethernet 1/0/2,
which is to be used for network management, to VLAN 2. Set the IP address of
VLAN-interface 2 as 10.10.10.2.
[Sysname] vlan 2
[Sysname-vlan2] port Ethernet 1/0/2
[Sysname-vlan2] quit
[Sysname] interface Vlan-interface 2
[Sysname-Vlan-interface2] ip address 10.10.10.2 255.255.255.0
[Sysname-Vlan-interface2] quit
# Enable the SNMP agent to send Trap messages to the NMS whose IP address is
10.10.10.1. The SNMP community name to be used is “public”.
