Supervision
This part is purely informative and indicates:
 Percent usage : use rate of the logs database, in percentage. The
database can host up to 1,000,000 logs.
 Number of logs into database .
Setup/Advanced
The Advanced category presents the following options:
 The ESAM (Event Signaling and Management) out-of-band
section lets you enable POIS additional UDP port (listening) port on
Electra VS and set its number. The UDP port 80 is always open. These
ports are used for data exchanges between Electra VS and the
Placement Opportunity Information System (POIS) as defined in the
Real-time Event Signaling and Management API specification (ESAM)
from CableLabs®. For more information, refer to Appendix
’ESAM’.
 The Parental Control section lets you define the HTTP port for the
reception of the parental sections from remote server
(customer-specfiic protocol).
These ports are disabled if
Allow HTTP connection is unchecked.
Refer to section
’Setup/Monitoring’ on page 176.

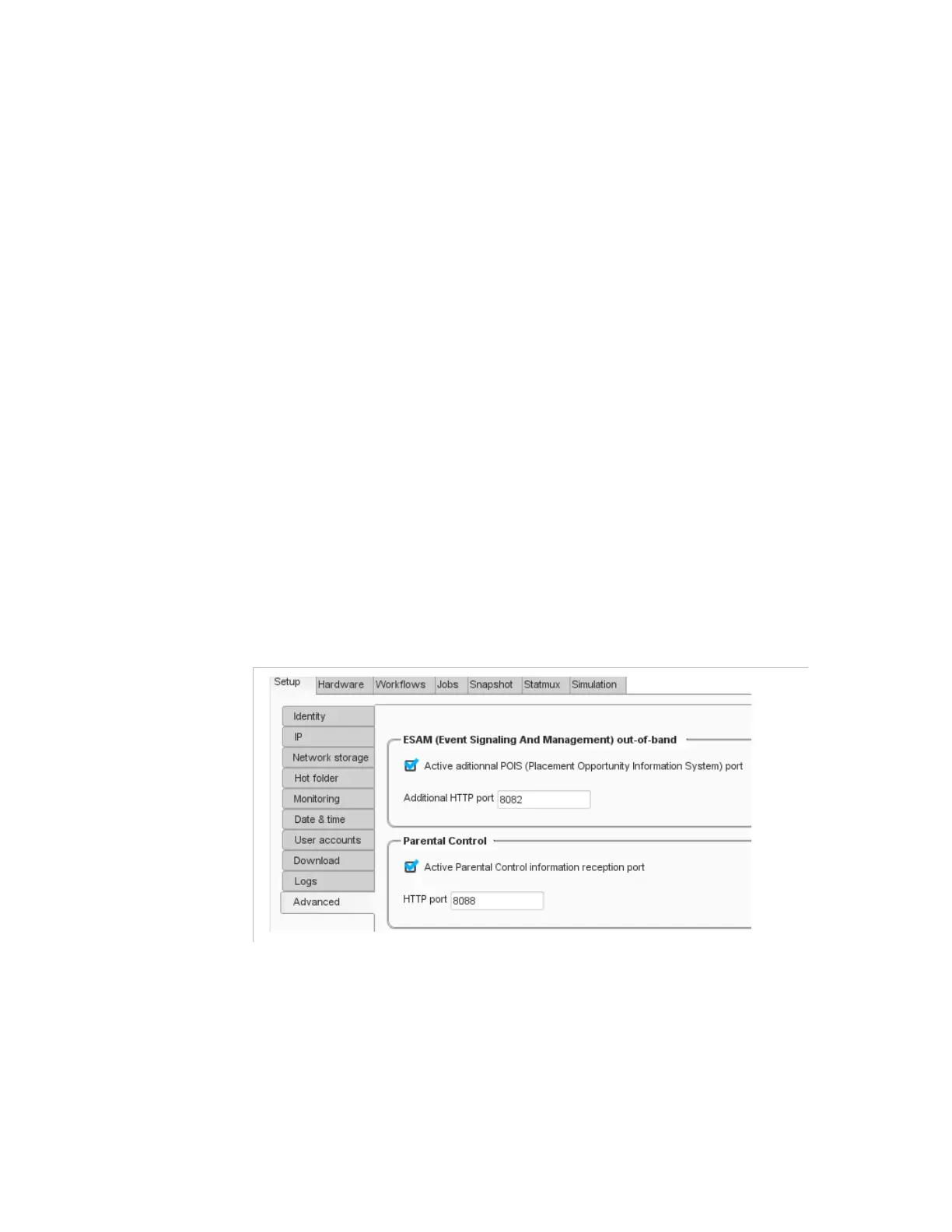

Figure 3-142. Port for ESAM out-of-band
