Chapter 3 ’Web User Graphical Interface’ — Workflow Library
240 Electra VS
-
Version 05.10
User Manual - Rev. A
Processing Component Specific Parameters
This section lists all processing components and details their specific
parameters. Processing components are sorted by category.
Inputs
TS over IP Input
Description
The
TS over IP input
processing component manages a MPEG-2 TS,
over UDP/IP or RTP/UDP/IP.
MPTS (multiple program) and SPTS (single program) are supported.
CBR and VBR TS are supported.

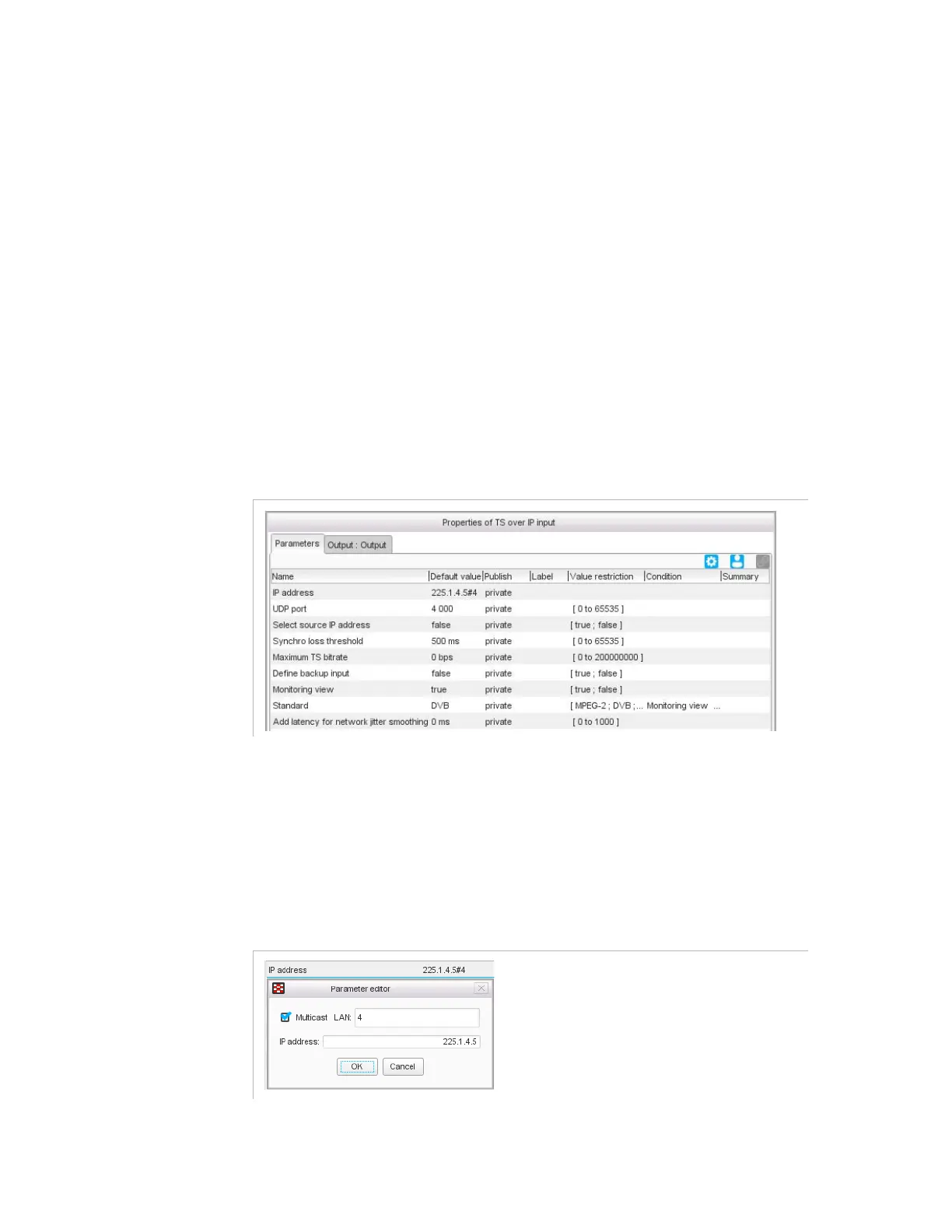

Figure 3-218. TS over IP input parameters
Parameters
For this processing component, you must set the following parameters:
IP address
: set the IP and LAN parameters. If it is a unicast address,
it must be part of a local network and must be consistent with the IP
configuration of the Electra VS.
Figure 3-219. IP parameters
225.1.4.5#4 stands for
IP = 225.1.4.5 on LAN 4
