Chapter 3 ’Web User Graphical Interface’ — Workflow Library
334 Electra VS
-
Version 05.10
User Manual - Rev. A
MPTS over IP Output
Description
The
MPTS over IP
output
processing component creates an MPTS
and streams it over UDP/IP or over RTP/UDP/IP. It also manage statistical
multiplexing (optional).
When this processing component is used, a MPTS name shall be given.
All the encoding jobs that uses this MPTS name will be multiplexed in a
single MPTS. A job based on this
MPTS over IP
output
processing
component is automatically created for this MPTS generation.

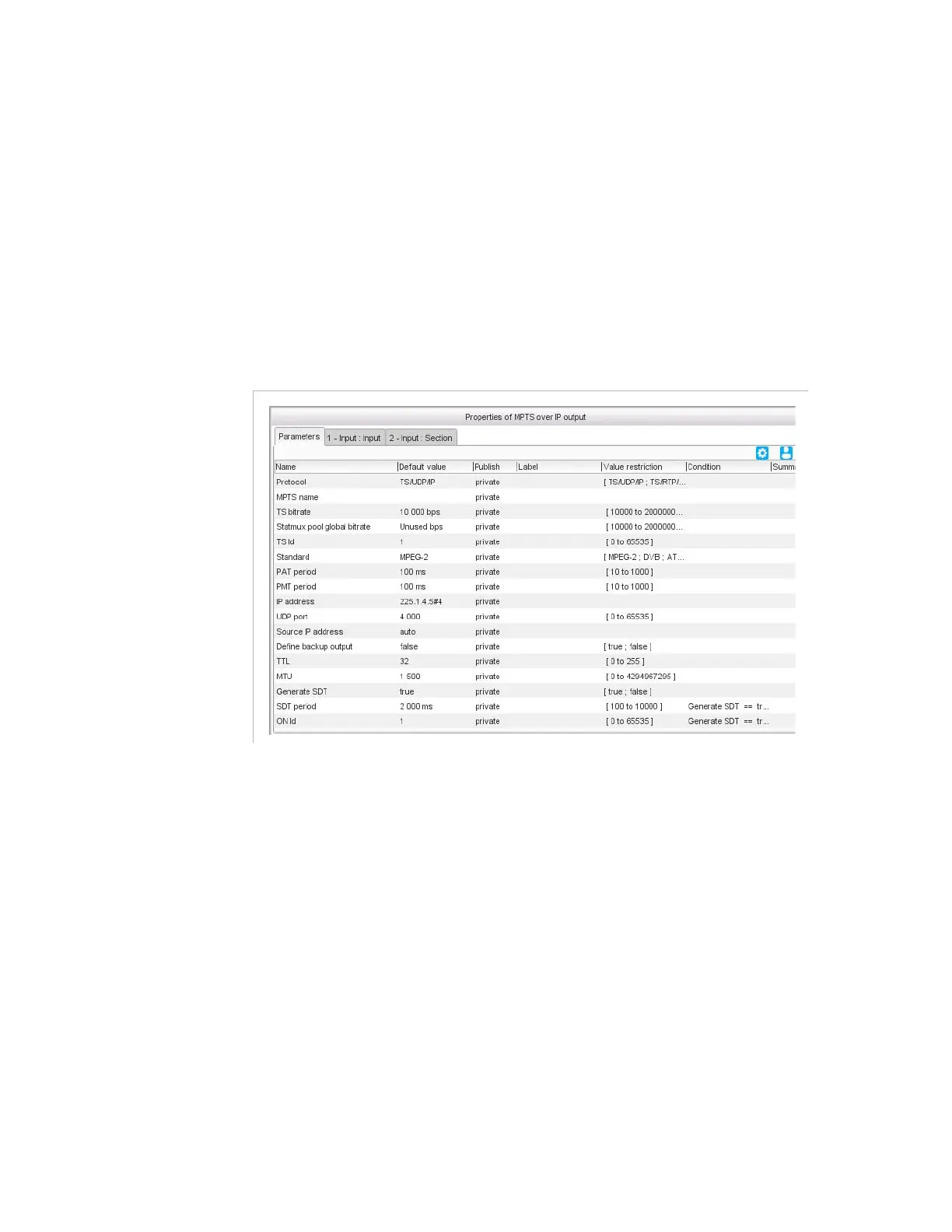

Figure 3-303. MPTS over IP output parameters
Parameters
For this processing component, you must set the following parameters:
In the
Parameters
tab,
Protocol, IP address, UDP port, Source IP address, TTL,
MTU
: see section
’TS over IP Streamer’
on page 332.
MPTS name
: name of the MPTS, that will be used as reference in the
jobs that will constitute the MPTS.
TS bitrate
: set the TS rate in bits per second.
